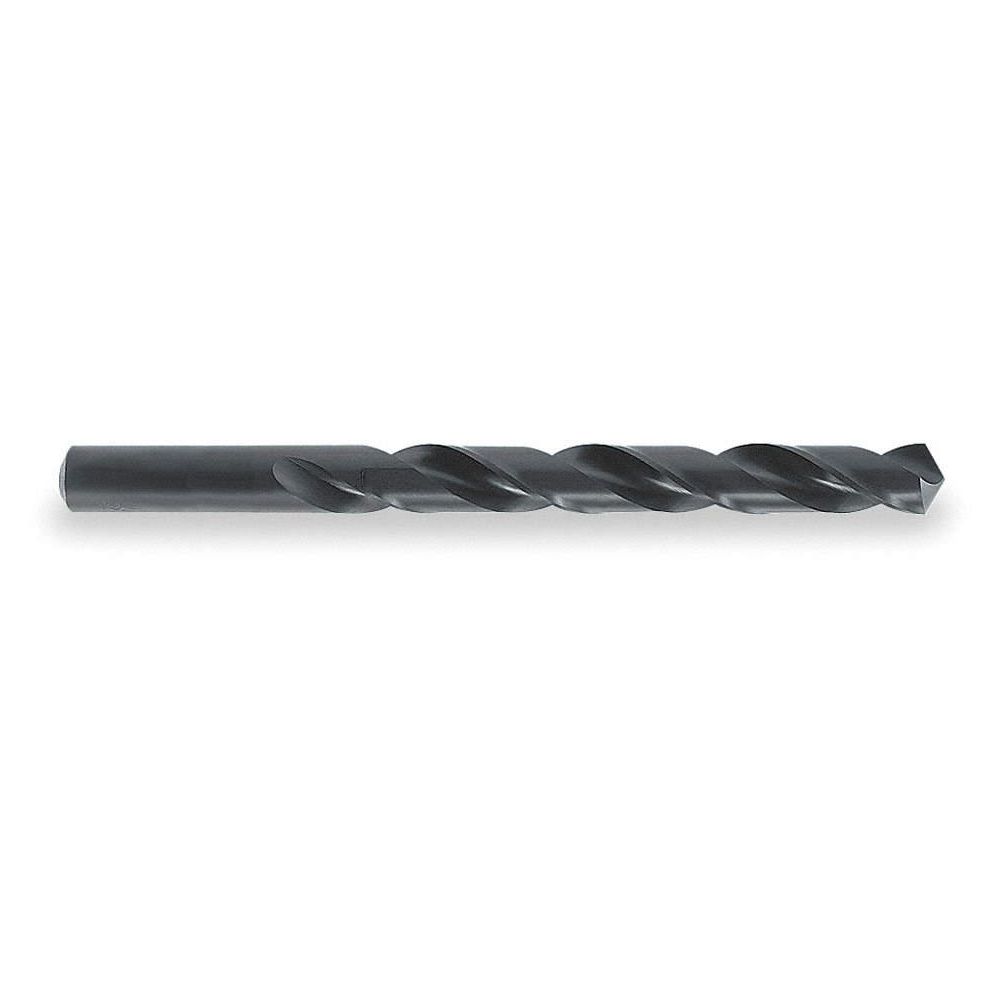

Cle-Line F, High Speed Steel, Jobber Drill Bit, 4-1/8" Overall Length, Black Oxide Drill Bit Finish

Hover over image to magnify
Jobber Bit,F,High Speed Steel
Jobber Bit,F,High Speed Steel
Cle-Line F, High Speed Steel, Jobber Drill Bit, 4-1/8" Overall Length, Black Oxide Drill Bit Finish Video
Cle-Line F, High Speed Steel, Jobber Drill Bit, 4-1/8" Overall Length, Black Oxide Drill Bit Finish Video

#919913-8 | Pkg Qty: 1

$3.66 pkg | $3.66 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
CLE-LINE
Item
Jobber Length Drill Bit
Coolant Through
Non-Coolant Through
Jobber Length Basic Material
High Speed Steel
Cutting Direction
Right
List Number
1899
Decimal Equivalent
0.257
Maximum Drilling Depth
1 in.
Depth x Diameter Ratio
4xD
Mfr. Part Number
C22722
Dimension Type
Letter
Number of Flutes
2
Drill Bit Dimension Type
Letter
Number of Pieces
1
Drill Bit Finish
Black Oxide
Overall Length
4-1/8 in.
Drill Bit Material
High Speed Steel
Package Quantity
1
Drill Bit Point Angle
118 deg.
Point Angle
118 deg.
Drill Bit Size
F
Point Type
Conventional Point
Drill Letter Size
F
Series
1899
Drill Point Length
0.0000 in.
Shank Diameter
1/4 in.
Finish
Black Oxide
Shank Length
1-1/4 in.
Flute Length
2-7/8 in.
Shank Type
Straight
Flute Type
Spiral
Shipping Weight
.04 lb.
Grade
General Purpose
Spiral Direction
Right Hand
Helix Angle
21 to 34
General
Application
For Carbon Steel And Cast Iron
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Material Grade - Machining
General Purpose
Depth:Dia. Ratio
4xD
Measurement System
Letter
Drill Bit Grouping
Individual
Primary Material Application ISO Code
K, N, P
Drill Bit Point Type
Conventional Point
Shank Dia.
1/4 in
Drill Diameter Tolerance
+0.0000 in /-0.0010 in
Shank Type - Machining
Straight
Drill Length Class
Jobber Length
Standards
ASME B94.11M, DIN 338
Finish - Machining
Black Oxide

Product Description

These drill bits come in standard letter sizes. The trade letter size for each drill bit indicates its compatibility with other tools that have the same trade letter size. The bits have a black-oxide finish that retains lubricants to improve the bits' wear resistance and chip flow. Black-oxide bits should only be used for drilling ferrous metals. These bits have spiral flutes that evacuate chips as the bits drill into a workpiece, and they have a straight shank that installs into a drill chuck or similar toolholder.
