MICRO 100

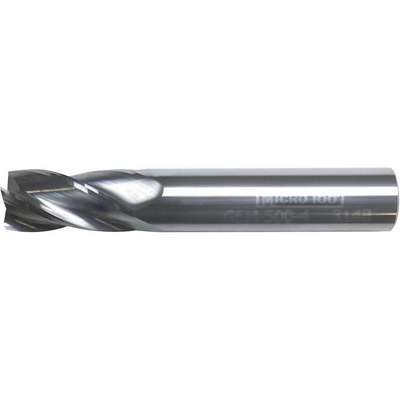

Square End Mill, 9/16" Milling Diameter, Number of Flutes: 4, 1-1/4" Length of Cut
Hover over image to magnify
#919865-5 | Pkg Qty: 1
$133.07 pkg | $133.07 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
MICRO 100
Item
Square End Mill
Cutting Direction
Right
Length of Cut
1-1/4 in.
Cutting Direction
Right Hand
List Number
GEM
Cutting Type
Center
Mfr. Part Number
GEM-562-4
Diameter
9/16 in.
Milling Diameter
9/16 in.
Dimension Type
Fractional Inch
Number of Flutes
4
End
Single
Overall Length
3-1/2 in.
End Mill Application
Roughing/Finishing
Pack Quantity
1
End Mill Cutting Type
Center Cutting
Primary Material Application
All Materials
End Mill Material
Carbide
Shank Diameter
9/16 in.
End Style
Square
Shipping Weight
0.41 lb.
Finish
Bright (Uncoated)
Single End/Double End
Single End
Grade
C2 Micro Grain
Type
Roughing/Finishing
Helix Angle
30 deg.
General
Application
Ferrous Materials
Measurement System
Fractional Inch
Drilling Tool Configuration
Individual
Milling Dia.
9/16 in
End Mill Style
Square
Primary Material Application ISO Code
H, K, M, P
Finish - Machining
Bright (Uncoated)
Shank Dia.
9/16 in
Material - Machining
Carbide
Shank Type - Machining
Straight
Material Grade - Machining
C2 Micrograin
Product Description
Four-flute end mills clear chips more quickly than end mills with more flutes and allow for higher feed rates than end mills with fewer flutes. They also typically have larger cores and are less prone to breaking than end mills with fewer flutes. The bright finish on these end mills provides a smooth, polished surface.
Item Barcode
Carb End Mill,9/16 In,4FL,CC,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 14G021 | Carb End Mill,9/16 In, |
 | UNSPSC CODES | 27112803 | |
 | VMRS (ATA) CODES | 053-006-009 | Carb End Mill,9/16 In, |
