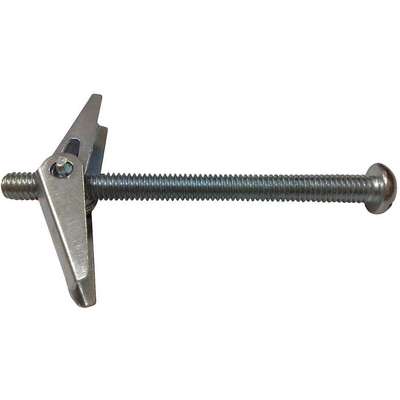

Steel Toggle Bolt Anchor, #6-32 Anchor Thread Size x 3-1/8" Usable Length, 50 PK
Hover over image to magnify
#919851-7 | Pkg Qty: 50
$17.30 pkg | $0.35 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Anchor Material
Steel
Item
Toggle Bolt Anchor
Anchor Thread Size
#6-32
Material
Steel
Bolt Size
1/8 in.
Mfr. Part Number
U63265.013.0400
Brand
APPROVED SUPPLIER
Pack Quantity
50
Drill Size
1/2 in.
Screw Length
4 in.
Finish
Zinc Plated
Shipping Weight
.95 lb.
Head Diameter
1/4 in.
Thread Length
3-31/32 in.
Head Height
0.1 in.
Usable Length
3-1/8 in.
Head Type
Mushroom
Wing Span
1-1/2 in.
General
Anchor Diameter
1/2 in
Minimum Clearance Behind Wall
4 in
Anchor Length
4 in
Minimum Material Thickness
1/2 in
Anchor Type
Toggle
Minimum Ultimate Shear Strength
45 lb
Body Length
4 in
Minimum Ultimate Tension Strength
43 lb
Bolt Size
1/8 in
Overall Length
4 in
Compatible Material
Block, Drywall
Pack Size
Small Pack
Drill Bit Size
1/2 in
Removable
Removable
Drive Type
Combination Slotted/Phillips
Screw Length
4 in
Finish
Zinc Plated
Screw Size
1/8 in
Finish Type
Zinc Plated
Series
Wall-Dog
Head Diameter
0.25 in
Shear Strength (1/2 in Drywall)
45 lb
Head Height
0.1 in
System of Measurement
Inch
Head Type
Round
Tension Strength (1/2 in Drywall)
43 lb
Manufacturer Location
Globally Sourced
Thread Direction
Right Hand and Left Hand
Material Grade/Class
Grade 4.8
Thread Length
3 31/32 in
Maximum Material Thickness
3 1/2 in
Thread Type
Coarse
Maximum Ultimate Shear Strength
120 lb
Usable Length
3 1/8 in
Maximum Ultimate Tension Strength
80 lb
Wing Span
1.5 in
Product Description
For use in light-duty applications, these steel toggle bolts offer easy installation. The spring-type wing expands to secure the bolt from an otherwise inaccessible point. Use on block, drywall, hollow walls, ceiling, and steel construction.
