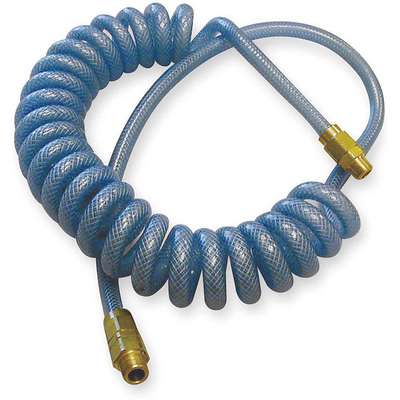

20 Braided Coil Polyurethane Hose with 1/4" Fitting Size and 1/4 Hose Inside Dia.

Hover over image to magnify
Poly Hose,Coil,1/4 In Hose Id,
Poly Hose,Coil,1/4 In Hose Id,

#919816-1 | Pkg Qty: 1

$97.05 pkg | $97.05 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Bend Radius
1 in.
Material
Polyurethane With Brass Fittings
Brand
ATP
Mfr. Part Number
PBS14-25CB2
Color Family
Blue
Package Quantity
1
Fitting Size
1/4 in.
Shipping Weight
1 lb.
Hose Inside Diameter
1/4 in.
Usable Length
20 ft.
Hose Outside Diameter
3/8 in.
Working Pressure
210 psi
Item
Polyurethane Hose
General
Compatible Chemicals
Air, Fresh Water
Hose Fitting A Type
MNPT
Fitting Material
Brass x Brass
Hose Fitting B Material
Brass
For Media Type
Air, Water
Hose Fitting B Type
MNPT
Hose Configuration
Coupled Assembly
Hose Fittings
Brass 1/4 in MNPT x Brass 1/4 in MNPT
Hose Cover Material
Polyurethane
Hose Tube Material
Polyurethane
Hose Fitting A Material
Brass
Temp. Range
40 Degrees to 120 Degrees F

Product Description

These coiled air hose assemblies have a polyurethane tube and a polyurethane cover that resist becoming brittle with age and maintain excellent flexibility when exposed to low temperatures and cold weather. These hoses are more flexible and have better recoil memory than coiled air hose assemblies with a nylon tube and nylon cover. They are also lightweight, which minimizes the effort it takes to lift and move the hoses. The hoses have bend restrictors on their ends that help prevent kinking. These coiled air hose assemblies are used to carry compressed air to pneumatic tools and equipment in industrial environments.

Coiled air hose assemblies are lengths of hose that are shaped like a spring. The coils of the hose retract when it is not in use to keep the hose out of the way, save space, and prevent it from dragging on the ground. Coiled hose assemblies are used in applications where the hose will be connected to overhead equipment. Air hose assemblies come with fittings installed on both ends of the hose for connecting the hose to pneumatic tools and equipment. Also known as pneumatic hoses or air compressor hoses, air hoses are used to carry compressed air to the tools and equipment.
