ALPHA FITTINGS

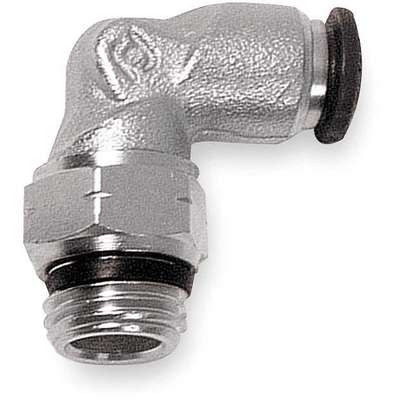

Swivel Elbow: Nickel Plated Brass, Push-to-Connect x Universal, For 10 mm Tube OD, 3 PK

Hover over image to magnify
Swivel Elbow,90 Deg,10mm Tube
PI_Asset_928654
Swivel Elbow,90 Deg,10mm Tube
PI_Asset_928654

#919813-9 | Pkg Qty: 3

$30.75 pkg | $10.25 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Basic Material
Metal
Maximum Pressure
250 psi
Body Material
Nickel Plated Brass
Mfr. Part Number
50110N-10-1/4-PK3
Brand
ALPHA FITTINGS
Package Quantity
3
Color Family
Silver
Pipe Size
1/4 in.
Connection Type
Tube x MNPT
Pneumatics Fittings Sub-Category
Elbows
Gasket Material
Rubber
Shipping Weight
.33 lb.
Hex Size
15 mm
Thread Size
1/4 in.
Item
Swivel Elbow, 90°
Tube Size
10 mm
Length
26-1/2 mm
Type
90°
Material of Construction
Nickel Plated Brass
General
End Connection Type
Push-to-Connect, Threaded
Includes Pre-Applied Thread Sealant
Yes
Finish/Coating
Nickel-Plated
Metal Detectable
Yes
Fitting Pipe Size
1/4 in
Pipe Size - Pipe Fitting
1/4 in
Fitting Side A Connection Type
Push-to-Connect
Special Features
Universal Thread System Compatible with Inch and Metric Threads
Fitting Side A Tube Outer Diameter
10 mm
Specific Fitting Shape
90° Swivel Elbow Adapter
Fitting Side B Connection Type
Universal
Thread Sealant Type
NBR70
Fitting Side B Pipe Size
1/4 in

Product Description

Features universal threads that are compatible with NPT, BSPP, BSPT, ISO 7, ISO 228, G, and J style female pipe threads, and can be used with copper, nylon, polyethylene, and polyurethane tubing. Buna thread seal and innovative internal lip seal helps eliminate leaks. Design avoids the need for PTFE tape or thread sealants, and eliminates the need to identify the thread pitch before connecting tubing.
