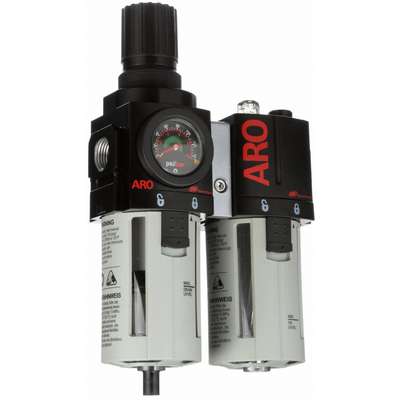

Filter/Regulator/Lubricator: 1/2 in NPT, 120 cfm, 150 psi Max Op Pressure, 5 micron, 2000 Series
Hover over image to magnify
#919803-4 | Pkg Qty: 1
$356.52 pkg | $356.52 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Adjustment
0 to 140 psi
Maximum Temperature (Deg. F)
125
Adjustment Knob
Standard
Mfr. Part Number
C38341-600
Air Consumption
scfm
NPT
1/2 in.
Bowl Material
Polycarbonate
Number of Pieces
2
Brand
ARO
Overall Height
9.96 in.
Drain Type
Manual
Overall Width
3.55 in.
Filter Rating
5 micron
Package Quantity
1
Item
Filter/Regulator/Lubricator
Pipe Size
1/2 in. NPT
Maximum Flow
120 cfm
Series
Standard
Maximum Flow (CFM)
120 CFM
Shipping Weight
3.68 lb.
Maximum Pressure
150 psi
Type
2 Piece
Maximum Temperature
125 deg. F
Width
3.55 in.
General
Adjustment Mechanism
Knob
Includes
Guard
Adjustment Range
0 to 140 psi
Lubricator Bowl Capacity
4.3 oz
Adjustment Range - Air Treatment
0 to 140 psi
Lubricator Bowl Guard Included
Yes
Air Inlet Type
NPT
Lubricator Bowl Guard Material
Polycarbonate
Air Outlet Size
1/2 in
Lubricator Bowl Material
Polycarbonate
Air Outlet Type
NPT
Max. Flow - Air Treatment
120 cfm
Bowl Material - Air Treatment
Polycarbonate
Max. Flow Range - Air Treatment
101 to 150 cfm
Bowl Size - Air Treatment
1.9 oz
Max. Incoming Pressure - Air Treatment
150 psi
Connection Size - Air Treatment
1/2 in NPT
Max. Pipe Run - Air Treatment
6 ft
Drain Part Compatibility
104320
Maximum Regulated Pressure
140 psi
Filter Bowl Capacity
1.9 oz
Minimum Regulated Pressure
0 psi
Filter Bowl Guard Included
Yes
Modular Connection
Modular Connection
Filter Bowl Guard Material
Nylon
Pressure Drop
33 psi
Filter Bowl Material
Plastic
Pressure Gauge Included
Yes
Filter Rating - Air Treatment
5 micron
Pressure Gauge Port Size
1/8 in
For Fluid Type
Compressed Air
Pressure Gauge Port Type
NPT
For Maximum Pipe Run
6 ft
Regulator Type
Relieving
For Removal Of
Oil, Particles, Water
Sight Dome Included
Yes
For Substance Type
Air
Size - Air Treatment
Subcompact
Gauge Port Size
1/8 in NPT
System Location
Air Line
Product Description
The filter/regulator element is designed to remove airborne solid and liquid contaminants, and provide controlled, consistent air pressure. The lubricator element helps ensure that your pneumatic device receives the required lubrication to maintain operating performance.
