CLEVELAND

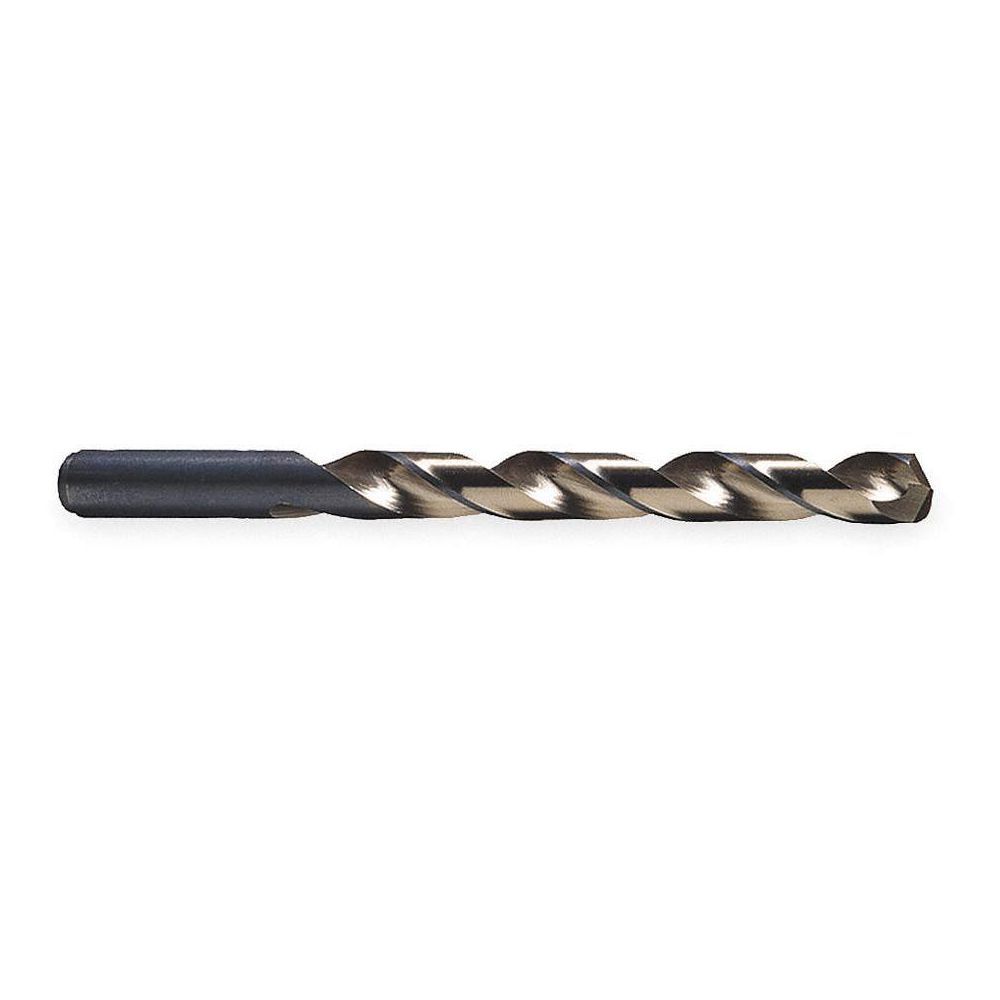

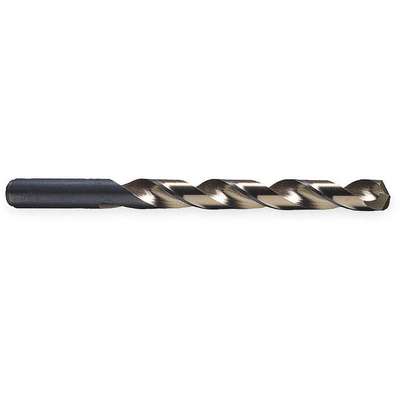

Cleveland 5.00mm, Cobalt Steel, Jobber Drill Bit, 86.00mm Overall Length, Straw/Bronze Drill Bit Finish

Hover over image to magnify
Jobber Bit,5.00mm,Cobalt Steel
Jobber Bit,5.00mm,Cobalt Steel
Cleveland 5.00mm, Cobalt Steel, Jobber Drill Bit, 86.00mm Overall Length, Straw/Bronze Drill Bit Finish Video
Double tap image to magnify
Jobber Bit,5.00mm,Cobalt Steel
Jobber Bit,5.00mm,Cobalt Steel
K2dVbC0kSKU

#919793-3Pkg Qty: 1

$7.54 pkg | $7.54 ea

In Stock

Shipping to 43085
Expected to arrive Wed. Apr 09.
|

Technical Specifications

Key Specifications
Brand
CLEVELAND
Jobber Length Basic Material
Cobalt
Coolant Through
Non-Coolant Through
List Number
2213
Cutting Direction
Right
Maximum Drilling Depth
3/4 in.
Decimal Equivalent
0.1969
Meets/Exceeds
National Aerospace Standards (NAS) 907, Type J
Depth x Diameter Ratio
4xD
Mfr. Part Number
C70097
Dimension Type
Metric
Number of Flutes
2
Drill Bit Dimension Type
Metric
Number of Pieces
1
Drill Bit Finish
Straw/Bronze
Overall Length
86 mm
Drill Bit Material
Cobalt Steel
Package Quantity
1
Drill Bit Point Angle
135 deg.
Point Angle
135 deg.
Drill Bit Size
5.00 mm
Point Type
Split Point
Drill Point Length
0.0408 mm
Series
2213
Flute Length
52 mm
Shank Diameter
5 mm
Flute Type
Spiral
Shank Length
34 mm
Grade
Heavy Duty
Shank Type
Straight
Helix Angle
21 to 34
Shipping Weight
.02 lb.
Item
Jobber Length Drill Bit
Spiral Direction
Right Hand
General
Aircraft Drill
Yes
Material Grade - Machining
M42
Application
For Stainless Steel, Tool Steel, Alloy Steel And Titanium
Primary Material Application ISO Code
M, N, P
Drill Bit Grouping
Individual
Secondary Material Application
Cast Iron, Hardened Steel, Nickel, Titanium
Drill Diameter Tolerance
+0.0000 in /-0.0007 in
Secondary Material Application ISO Code
H, K, S
Drill Length Class
Jobber Length

Product Description

These drill bits meet National Aerospace Specification (NAS) 907 Type J for drill bits used in aircraft repair and production. They have a have a straw/bronze finish that improves their wear resistance, and they have spiral flutes that evacuate chips as the bits drill into a workpiece.
