OMRON

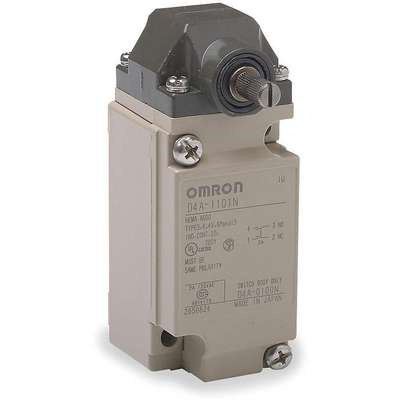

Omron Rotary, No Lever Heavy Duty Limit Switch; Location: Side, Contact Form: SPDT, CW, CCW Movement
Hover over image to magnify
#919793-1 | Pkg Qty: 1
$202.62 pkg | $202.62 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 600 V
Mfr. Part Number
D4A1102N
Actuator Location
Side
Movement
CW, CCW
Actuator Style
Rotary Head, No Lever
NEMA Rating
No NEMA Rating
Amperage
10 A
Operating Force
0.4N-m
Basic Actuator Style
Rotary
Operating Temperature Range
-4 deg. F to 212 deg. F
Body Depth
1.73 in.
Package Quantity
1
Body Height
2.97 in.
Replacement Body
2CLT7
Body Material
Aluminum
Replacement Head
2CLU3
Body Style
Miniature
Replacement Receptacle
2CLT5
Body Width
1.65 in.
Series
D4A
Boot Sealed Actuator
No
Shipping Weight
.72 lb.
Brand
OMRON
Style
Lever Arm, High Precision
Contact Form
SPDT
Threaded for Panel Mounting
No
DC Contact Rating
Not Rated
Travel
Total Travel 82
Electrical Connection
Screw Terminals
Type
Heavy Duty
Hazardous Location
No
Voltage
600 VAC
Height
4.11 in.
Voltage Rating
600 VAC
IP Rating
67
Width
1.65 in.
Item
Heavy Duty Limit Switch
Wiring Entry
1/2 in. NPT
Limit Switch Style
Heavy Duty Limit Switch
General
AC Contact Rating - Limit Switch
10A @ 600V
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
Mounting - Limit Switch
Surface
Actuator Style - Limit Switch
No Lever, Rotary
Mounting Hole - Limit Switch
(2) 0.20 in dia
Basic Actuator Style - Limit Switch
Rotary
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Body Depth - Limit Switch
1.73 in
Mounting Hole Spacing - Limit Switch
2.34 in x 1.16 in
Body Height - Limit Switch
2.97 in
Operating Temp. Range
-40° to 212°F
Body Style - Limit Switch
Miniature
Standards
UL, CSA
Body Width - Limit Switch
1.65 in
Stem Thread - Limit Switch
No Stem
Product Description
This heavy duty limit switch features a rotary head actuator and screw-terminal connectors. It also features a double seal on the head and a complete gasket cover.
