DAYTON

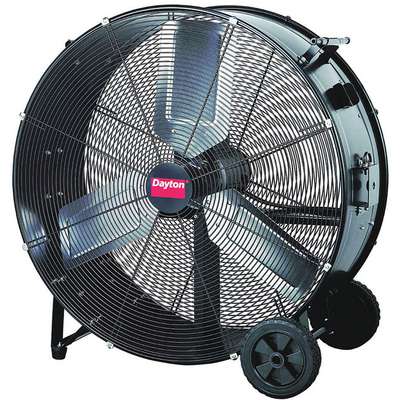

Dayton Light-Duty Industrial Fan: Light-Duty Industrial Fan, 36 in Blade Dia, 2 Speeds, 115 V AC

Hover over image to magnify
Air Circulator,12,500cfm,115V,
Air Circulator,12,500cfm,115V,

#919768-4 | Pkg Qty: 1

$570.74 pkg | $570.74 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Flow
9,200/12,550 cfm
Motor RPM
750/650
Assembled/Unassembled
Partially Assembled
Motor Type
Permanent Split Capacitor
Bearing Type
Ball
Mounting Location
Floor
Blade Diameter
36 in.
NEMA Plug Configuration
5-15P
Blade Material
Aluminum
Number of Blades
3
Brand
DAYTON
Oscillating
No
Cord Length
10 ft.
Outside Diameter
38-1/2 in.
Drive Type
Direct
Package Quantity
1
Duty
Light Duty
Phase
1
Guard Material
Steel
Shaft Diameter
5/8 in.
Hz
60 Hz
Shipping Weight
68 lb.
Item
Industrial Fan
Sound Level
75 dBA
Mfr. Part Number
39UK56
Standards
cULus Listed
Mobile/Stationary
Mobile
Thermal Protection
Automatic
Motor Enclosure
Open Air Over
Voltage
115V AC
Motor HP
1/2
Watts
625/550
Motor Insulation
Class B
Width
38-1/2 in.
General
Air Circulator Height
39 in.
Fan Housing Material
Steel
Air Velocity @ 20 Ft.
372/261 fpm
Fan Mounting Location
Floor
Air Velocity @ 40 Ft.
235/164 fpm
Includes
7 in Plastic and Rubber Wheels, Cord Wrap
Air Velocity @ 60 Ft.
179/125 fpm
Max. Ambient Temp.
104 Degrees F
Application
Spot Cooling and People Cooling
Wheel Dia.
7 in
Assembly Required
Yes
Wheeled Base
Mobile
Environmental Applications
Industrial
Wire Guard Finish
Polyester Powder Coated Black
Fan Cord Length
10 ft

Product Description

Light-duty industrial mobile and stationary floor fans cool light manufacturing areas, warehouses, and other dry, clean spaces. These air circulators are used where an office fan is inadequate and a heavier-duty or wet-location industrial fan isn't needed. Compared to standard-duty industrial fans, these light-duty fans are made of lighter-gauge materials and have a lower-horsepower motor with less-robust bearings.

Industrial mobile and stationary floor fans sit close to the ground to resist tipping over, even when bumped, while providing a powerful stream of air at floor level. These air circulators are often used for spot cooling workstations or production lines and for general cooling in manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact. Mobile floor fans have wheels, so they can be rolled from one location to another as cooling needs change. Stationary floor fans are used in applications where fans don't need to be frequently relocated, but they are generally light enough to carry between locations.
