SOUTHWORTH

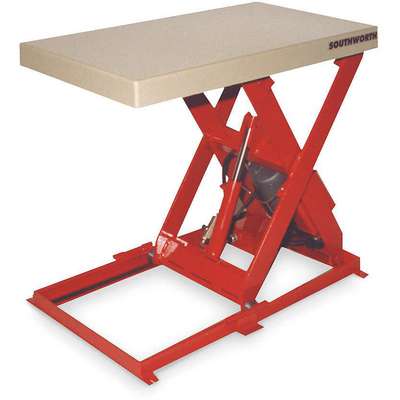

Southworth Stationary Electric Lift Scissor Lift Table, 1500 lb. Load Capacity, Lifting Height Max. 41-1/4
Hover over image to magnify
#919724-9 | Pkg Qty: 1
$4,982.80 pkg | $4,982.80 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SOUTHWORTH
Maximum Lifting Height
41-1/4 in.
Frame Material
Steel
Mfr. Part Number
LL1.5-35-2448
Item
Scissor Lift Table
Minimum Lifting Height
6-1/4 in.
Lift Control
Foot Control
Mobile/Stationary
Stationary
Lift Mechanism
Hydraulic
Package Quantity
1
Lift Mobility
Electric Lift
Phase
1
Lift Table Item
Scissor Lift Table
Platform Length
48 in.
Lift Table Platform Style
Fixed
Platform Style
Fixed
Lift Voltage
115 VAC
Platform Width
24 in.
Lifting Height Maximum
41-1/4 in.
Powered By
Electric
Lifting Height Minimum
6-1/4 in.
Raised Height
41-1/4 in.
Load Capacity
1500 lb.
Shipping Weight
423 lb.
Lowered Height
6-1/4 in.
General
HP
1/2
Lifting Height Min.
6 1/4 in
Includes
Foot Control with Safety Cover, Control Cord, and Power Cord
Up Speed Seconds
32 sec
Lifting Height Max.
41 1/4 in
Product Description
Raise and lower heavy workpieces using power from a standard wall outlet. Table comes with a NEMA 1 foot switch control with safety cover and control cord. Adjustable down speed. Lift cylinder vented to reservoir. Maintenance-free pins, rollers, and bushings are lubricated-for-life.
