WATTS

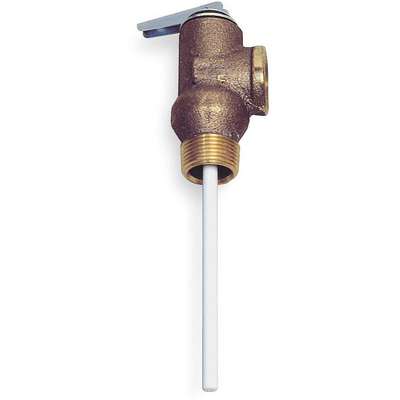

Temperature and Pressure Relief Valve, 100,000 BtuH, 150 psi, 4" Thermostat Length
Hover over image to magnify
#919717-8 | Pkg Qty: 1
$19.60 pkg | $19.60 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Bronze
Mfr. Part Number
100XL-4
Brand
WATTS
Outlet Size
3/4 in.
Height
3-1/2 in.
Outlet Type
FNPT
Inlet Size
3/4 in.
Package Quantity
1
Inlet Type
MNPT
Shipping Weight
.6 lb.
Item
Temperature and Pressure Relief Valve
Spring Material
Stainless Steel
Maximum Pressure
150 psi
Width
1-7/8 in.
General
Max. Temp.
210 Degrees F
Thermostat Length
4 in
Standards
ASME Rated, CGA Listed, Meet FHA Specifications, Military Spec, MIL-V-13612C, Rated by AGA for Heaters Up to 100000 Btu/HR Input ANSI Z21.22 Standard and
Product Description
T&P Valves
- Max. temp.: 210°F
- Provide automatic temperature and pressure protection for hot water heaters and supply tanks. Test lever allows pressure checks during operation.
- ASME rated, CSA Certified, and meet ANSI Z21.22 standard.
- Standard Shank
- Part Numbers: 1A543 and 4P947 meet FHA requirements and Mil. Spec. MIL-V-136-12D, Type 1. Low-lead valves are certified for use in potable water applications.
Expertly Selected Product Pairings
Item Barcode
T & P Relief Valve,3/4 In.
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4X563 | T & P Relief Valve,3/4 In. |
 | UNSPSC CODES | 40141606 | |
 | VMRS (ATA) CODES | 053-006-009 | T & P Relief Valve,3/4 In. |
