ULTRA-DEX USA

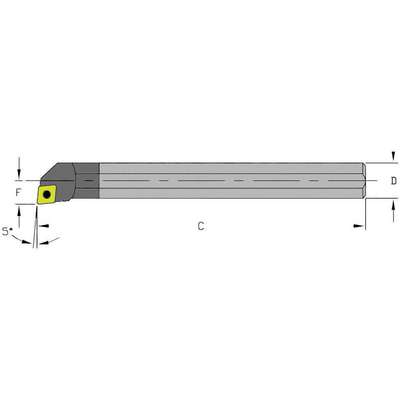

Indexable Boring Bar, Insert Shape 80 Diamond, Overall Length 8 in
Hover over image to magnify
#919615-3 | Pkg Qty: 1
$327.11 pkg | $327.11 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
ANSI Code
E08R SCLPL2-312
Lead Angle
-5°
ANSI Number
E08R SCLPL2-312
Left/Right Hand
Left Hand
Brand
ULTRA-DEX USA
Mfr. Part Number
E08R SCLPL2
Cutting Direction
Left
Minimum Bore
0.600 in.
Cutting Direction
Left Hand
Mounting Style
Screw Lock
Cutting Edge Type
-5°
Overall Length
8.000 in.
Inscribed Circle
1/4 in.
Pack Quantity
1
Insert Shape
80° Diamond
Rake
Positive
Insert Size
21.51
Shank Material
Carbide
Insert Style
CPMT
Shipping Weight
0.7 lb.
Insert Thickness
0.0937 in.
Style
Coolant-Thru
Item
Indexable Boring Bar
Type
Turning
General
Center to Cutting Tip
5/16 in
Insert Inscribed Circle
1/4 in
Compatible Hardware
MTS-255 Insert Screw
Min. Bore Dia.
0.6000 in
Coolant Fed
Coolant Through
Number of Coolant Holes
1
Cutting Application
Boring
Number of Inserts
1
For Use With
CPMT 21.51
Shank Dia.
1/2 in
Insert Clearance Angle
11 Degrees
Side Cutting Edge Angle
-5 Degrees
Insert Holding Type
Screw On
Product Description
Indexable Boring Bar, Insert Shape 80 Degrees Diamond, Overall Length 8 in, E08R SCLPL2-312, 5/16 in, MTS-255 Insert Screw, Coolant Through, Boring, Left Hand
Item Barcode
Boring Bar,E08R SCLPL2-312
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 33NC35 | Boring Bar, E08R SCLPL2- |
 | UNSPSC CODES | 23241601 | |
 | VMRS (ATA) CODES | 053-006-009 | Boring Bar, E08R SCLPL2- |
