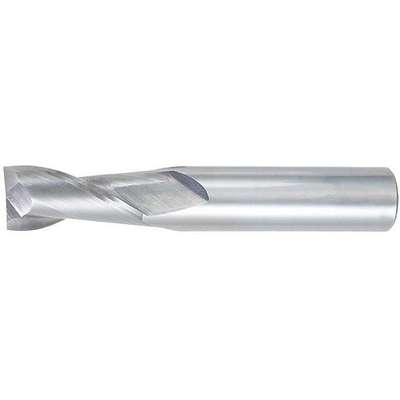

Square End Mill, 6.00mm Milling Diameter, Number of Flutes: 2, 19.00mm Length of Cut, TiAlN, 402

Hover over image to magnify
Carbide End Mill,402,6.0mm D,
Carbide End Mill,402,6.0mm D,
Square End Mill, 6.00mm Milling Diameter, Number of Flutes: 2, 19.00mm Length of Cut, TiAlN, 402 Video

#919593-2 | Pkg Qty: 1

$32.32 pkg | $32.32 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
OSG
Item
Square End Mill
Cast Iron Compatibility
Yes
Length of Cut
19 mm
Cutting Direction
Right
List Number
402
Cutting Type
Center
Mfr. Part Number
402-236211
Diameter
6.00 mm
Milling Diameter
6.00mm
Dimension Type
Metric
Non Ferrous Compatability
Yes
End
Center Cutting
Number of Flutes
2
End Mill Application
Finishing
Overall Length
64 mm
End Mill Cutting Type
Center Cutting
Package Quantity
1
End Mill Material
Carbide
Primary Material Application
Aluminum, Cast Iron, Hardened Steel, Steel, Tool and Die Steel
End Style
Square
Shank Diameter
6.00 mm
Finish
TiAlN
Shipping Weight
.05 lb.
Grade
High Performance
Single End/Double End
Single End
Hardened Compatibility
Yes
Type
Regular
Helix Angle
30 deg.
General
Application
For Carbon Steel, Tool Steel, Cast Iron, 300 or 400 Series Stainless Steel
Measurement System
Metric
Drilling Tool Configuration
Individual
Milling Dia.
6.00 mm
End Mill Style
Square
Primary Material Application ISO Code
H, K, N, P
Finish - Machining
TiAlN
Shank Dia.
6.00 mm
Material - Machining
Carbide
Shank Type - Machining
Straight
Material Grade - Machining
High Performance

Product Description

These end mills come in standard sizes expressed in millimeters. Two-flute end mills help maximize chip clearance. The TiAlN coating on these end mills withstands high temperatures and protects them from wear. It allows the end mills to be used at faster speeds than end mills with a bright finish, and it resists cracks and oxidation better than TiN or TiCN coatings.
