DELRIN

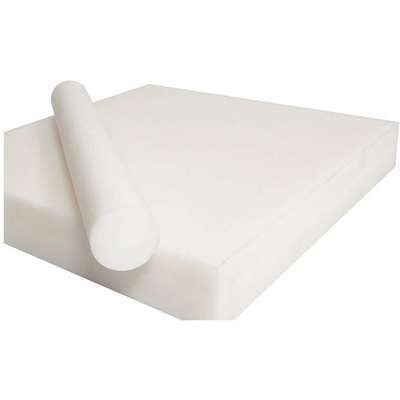

Rod Stock, Acetal Homopolymer, Standard Grade, 3 ft Plastic Length, 9/16" Plastic Diameter
Hover over image to magnify
#919581-4 | Pkg Qty: 1
$10.67 pkg | $10.67 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
DELRIN
Material
Acetal Homopolymer
Color Family
White
Mfr. Part Number
2XMK7
Diameter
9/16 in.
Package Quantity
1
Item
Rod Stock
Shipping Weight
1 lb.
Length
3 ft.
Tensile Strength
11000 psi
General
Corrosion and Chemical Resistance
Fair
Plastic Diameter
9/16 in
Diameter Tolerance
+0.003/-0.000 in
Plastic Diameter Tolerance
+0.003/-0.000 in
Friction Coefficient
0.2
Plastic Hardness
Rockwell M94
Friction Rating
Very Slippery
Plastic Hardness Rating
Hard
Grade
Standard
Plastic Length
3 ft
Impact Strength
1.5 ft-lb/in
Plastic Length Tolerance
±0.250 in
Impact Strength Rating
Poor
Shape
Rods
Length Tolerance
+/-0.250 in
Temperature Range
32° to 185°F
Machinability
Excellent
Type
150
Maximum Temperature
185 °F
Water Absorption
0.25 %
Minimum Temperature
32 °F
Water Absorption Rating
Good
Nominal Size
9/16 in dia x 3 ft L
Wear Factor
Excellent
Plastic Clarity
Opaque
Product Description
Delrin® AF Blend Low-Friction
- Tensile strength: 8000 psi Continuous use temp.: 180°F Heat deflection temp.: 244°F
- This 2:1 combination of Delrin AF100 and Delrin 150 has PTFE fibers uniformly dispersed throughout; offers excellent sliding/friction properties and better wear characteristics than unfilled Delrin. Closer static and dynamic coefficient of friction allow higher-speed operation with reduced wear and virtually no slip-stick. For use in moving parts.
- Delrin® Acetal Homopolymer Sheets and Round Rods
- Temp. range: 32° to 180°F
- Delrin® AF Blend Low-Friction
- Tensile strength: 8000 psi Continuous use temp.: 180°F Heat deflection temp.: 244°F
- This 2:1 combination of Delrin AF100 and Delrin 150 has PTFE fibers uniformly dispersed throughout; offers excellent sliding/friction properties and better wear characteristics than unfilled Delrin. Closer static and dynamic coefficient of friction allow higher-speed operation with reduced wear and virtually no slip-stick. For use in moving parts.
