HUBBELL WIRING DEVICE-KELLEMS

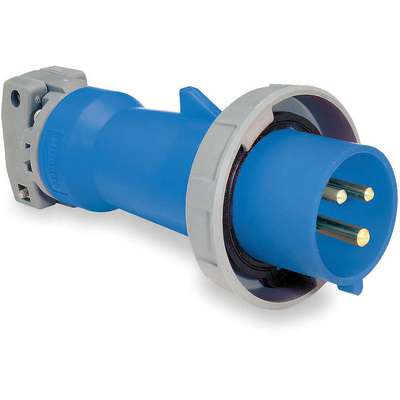

Hubbell Wiring Device-Kellems 20 Amp, 1-Phase Zytel 801 Nylon Watertight Pin and Sleeve Plug, Blue
Hover over image to magnify
#919268-3 | Pkg Qty: 1
$274.97 pkg | $274.97 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
20 A
Mfr. Part Number
HBL320P6W
Amps
20 A
Minimum Operating Temperature
-40 °C
Body Material
Zytel 801 Nylon
Minimum Wire Size
14 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Rating
4X
Cap Type
No Cap or Cover
Number of Poles
2
Color Family
Blue
Number of Wires
3
Connection Orientation
Straight
Overall Length
6.61 in.
Current Rating
20 A
Package Quantity
1
Features
Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin, Solid One-Piece Pins Machined from Solid Brass
Phase
Single
For Maximum Cable Diameter
0.78 in.
Pin & Sleeve Standards
CSA Certifications, IEC 60309, UL 1682, UL 1686
For Minimum Cable Diameter
0.36 in.
Power Indicating Light
No
Grounding
Grounded
Reverse Service
No
Grounding Style
IEC
Shipping Weight
.85 lb.
Horsepower
2 hp
Shrouded
Yes
Housing Color
Blue
Standards
CSA Certified LR280C, IEC 60309-1, IEC 60309-2, UL 1682, UL 1686C2
Housing Material
Polybutylene Terephthalate
Switch Rated
No
IP Rating
IP67
Type
Male Plug
Item
Watertight Pin and Sleeve Plug
UL 94 Flammability Rating
HB
Material of Construction
Nonmetallic, Watertight and Abuse Resistant
Voltage
250VAC
Maximum Operating Temperature
75 °C
Voltage Rating
250V AC
Maximum Wire Size
10 AWG
Wire Connection Type
Screw Terminals
General
Amps - Plugs and Receptacles
20
Phase - Electrical
1
Features
Watertight and Abuse Resistant
Voltage - Plugs and Receptacles
250V AC
Product Description
IEC Nonmetallic Watertight Pin and Sleeve Devices
- Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating.
