DEWALT

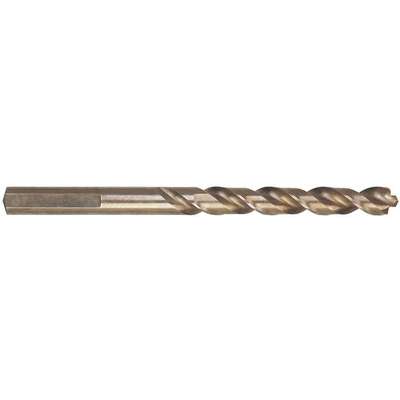

Dewalt 5/16" Pilot Point Drill Bit, Cobalt Steel, Gold Ferrous Oxide, 2-39/64" Depth, Round Shank Type
Hover over image to magnify
#919248-6 | Pkg Qty: 1
$13.45 pkg | $13.45 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
DEWALT
Impact Rated
No
Cutting Direction
Right
Item
Hex Shank Drill Bit
Decimal Equivalent
5/16 in.
Material
Cobalt
Decimal Size
0.3125 in.
Maximum Drilling Depth
2-9/16 in.
Drill Bit Dimension Type
Fractional Inch
Mfr. Part Number
DWA1220
Drill Bit Finish
Gold Ferrous Oxide
Overall Length
4-19/32 in.
Drill Bit Material
Cobalt Steel
Package Quantity
1
Drill Bit Point Angle
135 deg.
Point Angle
135 deg.
Drill Bit Size
5/16 in.
Shank Shape
Round
Drill Size
5/16 in.
Shank Type
Round
Finish
Gold Ferrous Oxide
Shipping Weight
.09 lb.
Flute Length
2-9/16 in.
System of Measurement
Fractional
Flute Type
Spiral
General
Coolant Fed
Non-Coolant Through
Material - Machining
Cobalt
Depth:Dia. Ratio
8xD
Measurement System
Fractional Inch
Drill Bit Grouping
Individual
Shank Dia.
5/16"
Drill Bit Point Type
Split Point
Shank Type - Machining
Straight with Three Flats
Finish - Machining
Black Oxide
Product Description
The TiN coating on these drill bits protects the bits from wear, increases chip flow in softer materials, and allows the bits to run at higher speeds than drill bits with a black-oxide finish. The bits are made from high-speed steel, which provides some flexibility and absorbs some shock and vibration.
Expertly Selected Product Pairings
Documents
Item Barcode
Drill Bit,4-39/64,Gold Ferrous
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 45CY96 | Drill Bit,4- 39/64,Gold |
 | UNSPSC CODES | 27111541 | |
 | VMRS (ATA) CODES | 053-006-009 | Drill Bit,4- 39/64,Gold |
