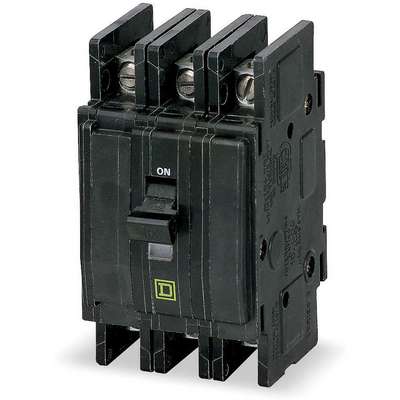

Square D Unit Mount Circuit Breaker, QOU, Number of Poles 3, 15 Amps, 240VAC, Standard

Name: Square D Unit Mount Circuit Breaker, QOU, Number of Poles 3, 15 Amps, 240VAC, Standard
Brand: SQUARE D
SKU: 9191337
Price: 401.63 USD
Availability: InStock

Hover over image to magnify

#919133-7 | Pkg Qty: 1

$401.63 pkg | $401.63 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

AC Voltage Rating

120/240VAC

Maximum Air Rating

10kA at 120/240VAC

Air @ 120 VAC

10kA

Maximum DC Voltage

Air @ 240 VAC

10kA

Maximum Wire Size

2 AWG

Air @ 48 VDC

5kA

Mfr. Part Number

QOU315

Amperage

15 A

Minimum Wire Size

14 AWG

Amps

15 A

Number of Poles

Brand

SQUARE D

Package Quantity

Circuit Breaker Type

Standard

Phase

Three

DC Voltage Rating

48VDC

Series

QOU

Depth

2.95 in.

Shipping Weight

1.05 lb.

Frame Size

100A/QOU

Terminal Connection

Slotted Box Lug (Reversible Line and Load)

High Amp Trip Setting

20-1/4

Type

Free Standing

Instantaneous Trip

Fixed

Voltage

240VAC

Item

Miniature Circuit Breaker

Width

2-1/4 in.

Length

4.05 in.

General

AIR @ 120VAC

10kA

Circuit Breaker Mounting Style

Surface/DIN Rail

AIR @ 240VAC

10kA

Compatible Panelboard/Load Center Series

AIR @ 48VDC

5kA

For Use With

Air Conditioning and Refrigeration Equipment, Heating

Circuit Breaker Actuator

Toggle

Standards

CSA Certified, HACR, IEC

Product Description

QOU, QDL, and QBL Circuit Breakers

QOU
as HACR type (except 10A) 48VDC rated at 5K AIR
Reversible line and load lugs for flush- or surface-mount wiring on 10 to 70A units. 35mm DIN/EN 50022 mountable. 4.05"L (4.45"L on 80 to 125A) x 0.75"W per pole x 2.98"D.
