THOMAS

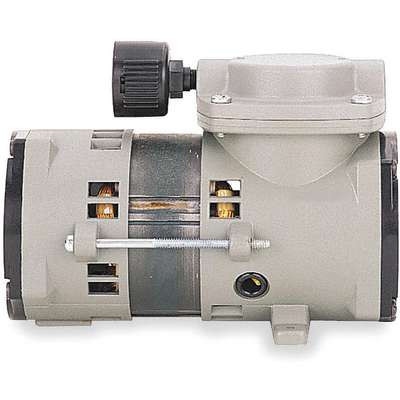

Compressor/Vacuum Pump: 1/10 hp, 12V DC, 22.9 in Hg Max Vacuum, 1/8 in NPT Inlet Size
#919100-4 | Pkg Qty: 1
$274.42 pkg | $274.42 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
Outlet
1/8
Brand
THOMAS
Overall Height
4-3/4 in.
Compressor Type
Diaphragm
Overall Length
7-3/8 in.
Free Air CFM @ 0 PSI
1.4
Overall Width
4-1/4 in.
Free Air CFM @ 30 PSI
0.49
Package Quantity
1
Full Load Amps
9-1/2
Port
Inlet and Outlet Make Switching to Vacuum or Pressure an Easy Transition
Horsepower
1/10
Shipping Weight
5.5 lb.
Item
Compressor/Vacuum Pump
Type
Diaphragm
Maximum PSI Cont./Int.
35/35
Valve
flapper valve
Maximum Vacuum
22.9 in. Hg
Voltage
12 VDC
Mfr. Part Number
107CDC20
Width
4-1/4 in.
General
Application
Air Brushing, Medical Field applications, Pond Aeration, Business Machines
Max. Pressure Cont/Int
35 psi / 35 psi
Flow Rate @ 0 psi
1.4 cfm
Maximum Continuous Pressure
35 psi
Flow Rate @ 30 psi
0.39 cfm
Maximum Flow Rate @ Pressure
0.39 cfm @ 30 psi, 1.4 cfm @ 0 psi
Free Air CFM @ 0 Vacuum
1.40
Maximum Intermittent Pressure
35 psi
Free Air CFM @ 20 Vacuum
0.00
Outlet Connection Type
NPT
HP
1/10 hp
Outlet Size and Type
1/8 in NPT
Inlet Connection Type
NPT
Output Power
1/10 hp
Inlet Size and Type
1/8 in NPT
Product Description
Permanently lubricated, virtually maintenance-free unit offers the versatility of reversible 1/8" and 1/4" inlet and outlet ports. Quiet operation and designed for applications requiring moderate pressure and continuous duty. Oilless for low maintenance.
