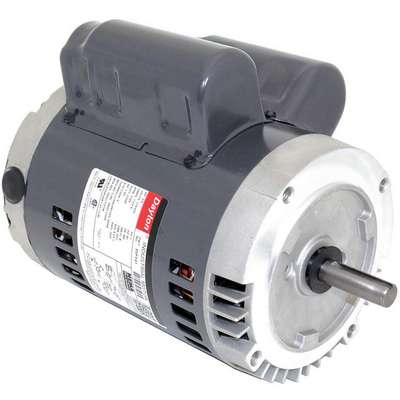

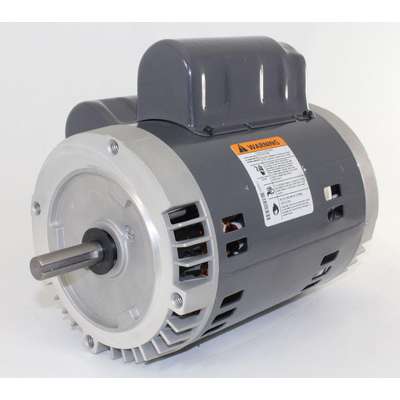

Dayton 3/4 HP General Purpose Motor,Capacitor-Start/Run,1725 Nameplate RPM,Voltage 115/230,Frame 56C

Name: Dayton 3/4 HP General Purpose Motor,Capacitor-Start/Run,1725 Nameplate RPM,Voltage 115/230,Frame 56C
Brand: DAYTON
SKU: 9190283
Price: 549.71 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#919028-3Pkg Qty: 1

$549.71 pkg | $549.71 ea

In Stock

Shipping to 43085

Expected to arrive Thu. Apr 03.

Technical Specifications

Key Specifications

Bearings

Ball

Motor Type

Capacitor-Start/ Capacitor-Run

Brand

DAYTON

Mounting

Face

Duty

Continuous

Mounting Position

Horizontal

Duty Cycle

Continuous

Nameplate RPM

1725

Enclosure

Open Dripproof

Overall Length

11-15/16 in.

Frame

56C

Package Quantity

Full Load Amps

7.0/3.5

Phase

Single

Rotation

CW/CCW

Insulation Class

Service Factor

1-1/4

Item

General Purpose Motor

Shaft Length

1-7/8 in.

Length Less Shaft

9-7/8 in.

Shaft Type

Keyed

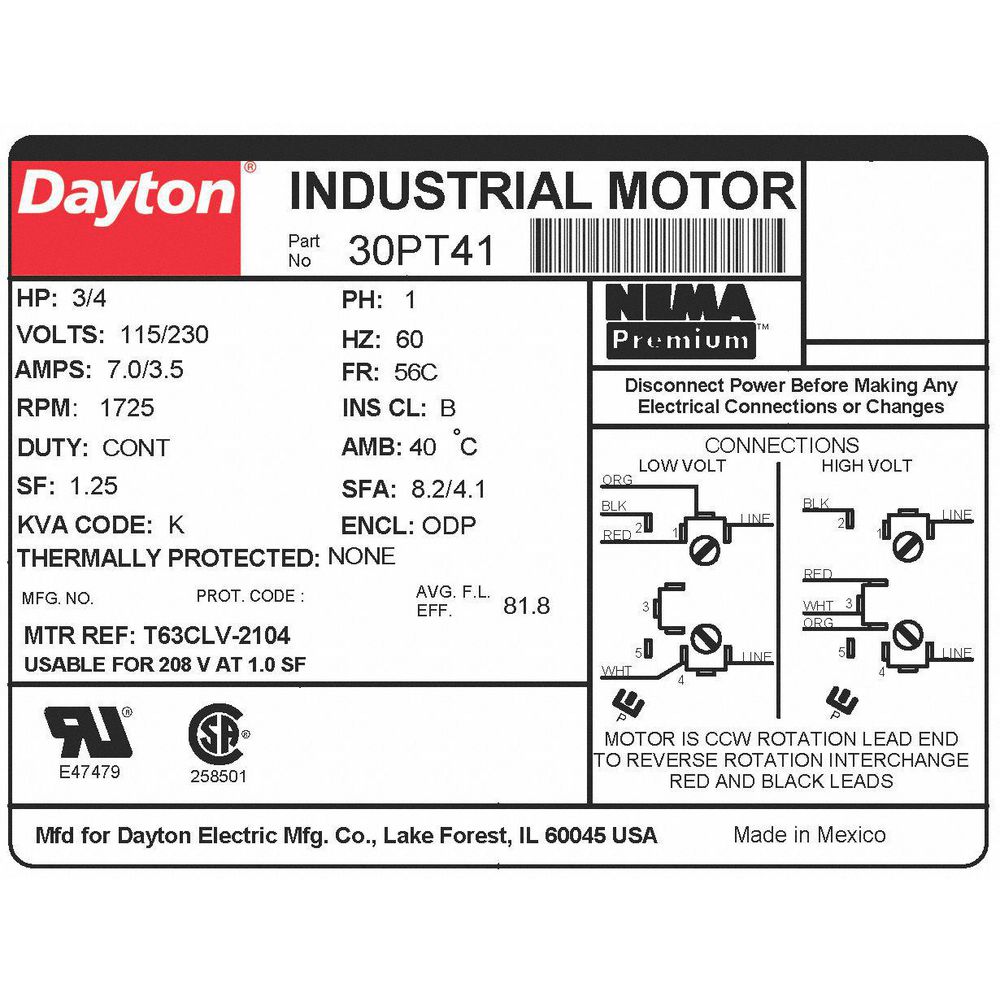

Mfr. Part Number

30PT41

Shipping Weight

31.8 lb.

Mfr. Warranty Length

1 yr.

Thermal Protection

None

Motor Design

Capacitor-Start/Run

Voltage

115/230 VAC

General

Capacitor Required

Yes

Motor Frame Material

Rolled Steel

Efficiency Group

NEMA Premium Efficient

No. of Speeds

Green Certification or Other Recognition

Energy Aware Certified

Nominal Efficiency

81.8 %

Green Environmental

Product Contributes To Reducing Energy Consumption

RPM Group

1701-1800

3/4

RPM Range

1,701-1,800

Includes

Shaft Slinger, Start Cap 504MFD @ 220V, Run Cap 50MFD @ 370V

Shaft Dia.

5/8 in

Max. Ambient Temp.

40 °C

Standards

CSA (258501), UL (E47479)

Motor Application

General Application

Voltage Compatibility

115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC

Motor Efficiency Group

Premium Efficient

Product Description

NEMA 56 frame capacitor-start/run general purpose AC motors have a standard 5/8" diameter, 1-7/8" length shaft whose center is 3-1/2" above the base mounting surface. Variations to the frame's standard dimensions and design are indicated by a letter designation following the frame number, such as 56HZ or 56C. The letter “H” indicates that the frame has a set of mounting holes at 3" and 5", “Z” indicates that the frame has a nonstandard shaft, and “C” indicates that the motor can be face mounted. These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).
