REELCRAFT

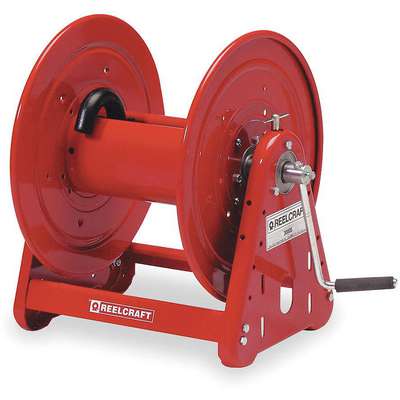

Hand Crank Hose Reel: 300 ft (3/8 in I.D.), 17 3/4 in L x 25 3/4 in W x 20 1/4 in H, TFE/P

Hover over image to magnify
Reel,Pressure Washer
Reel,Pressure Washer

#918981-6 | Pkg Qty: 1

$465.82 pkg | $465.82 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Consumption
scfm
Includes Hose
No
Bearings
Permanently Lubricated
Item
Hand Crank Hose Reel
Brand
REELCRAFT
Length
17-3/4 in.
Color Family
Red
Maximum Pressure
5000 psi
Drive Type
Hand
Maximum Temperature (Deg. F)
400
Duty Rating
Heavy Duty
Mfr. Part Number
CA38112 M
Enclosed
No
Mounting Location Type
Floor, Wall, Bench, Truck
Finish
Powder Coated
Overall Height
20-1/4 in.
Horsepower
None
Overall Length
17-3/4 in.
Hose Capacity
300 ft. (3/8 in I.D.)
Overall Width
25 in.
Hose Ends
1/2 in. (M)NPT
Package Quantity
1
Hose Included
No
Reel Inlet
1/2 in. (F)NPT
Hose Inside Diameter
3/8 in.
Reel Material
Steel
Hose Length
300 ft.
Seal Type
Aflas
Hose Reel Group
Motor Driven and Hand Crank Hose Reels
Shipping Weight
49 lb.
Housing Material
Steel
Type
Pressure Wash
Includes Gooseneck
Yes
Width
17-3/4 in.
General
Base Motion Type
Stationary
Mounting Hole Center to Center Height
9 in
Bearing Construction
Permanently Lubricated
Mounting Hole Center to Center Width
15 3/4 in
Features
Heavy Duty and Bolted Construction
Not Included
Hose
Hose Inside Dia.
3/8 in
Number of Mount Holes
4
Hose Outlet
1/2 in (F)NPT
Reel Finish
Powder Coated
Hose Outside Dia.
3/8 in
Swivel Inlet Gender
Female
Hose Reel Primary Application
Air, Diesel, Garden, Gasoline, Hydraulic Oil, Oil, Pre-Rinse, Pressure Washer, Washdown, Water
Swivel Inlet Size
1/2 in
Hose Reel Product Group
Hand Crank Hose Reel
Swivel Inlet Thread Size
1/2 in - 14
Hose Reel Type
Free Standing Hose Reel, Vehicle Mount Hose Reel, Wall Mount Hose Reel
Swivel Inlet Type
NPT
Includes
Instructions
Swivel Material
Nickel Plated Steel
Max. Pressure Rating
5000 psi
Swivel Outlet Gender
Male
Mount Base Height
12 5/8 in
Swivel Outlet Size
1/2 in
Mount Base Width
15 3/4 in
Swivel Outlet Thread Size
1/2 in - 14
Mount Hole Diameter
1/2 in
Swivel Outlet Type
NPT

Product Description

Multipurpose hand-crank reels with gooseneck adapters are built for rugged applications requiring long lengths of hose and larger storage capacity. The longer gooseneck adapter provides more space for physically connecting the hose and helps prevent kinks in thicker hoses during retraction. The open drum design provides smooth, even hose wrapping around drum. A drag brake or tension brake prevents freewheeling or de-spooling during operation, transport, or storage. These steel reels with corrosion-resistant finish mount on the floor, wall, bench, or on a truck. Multipurpose hand-crank hose reels with gooseneck adapters are used with air, water, and chemical hoses for pest and weed control, pressure washing, and in chemical fluid transfer. Consider psi requirements when selecting a hose reel for specific applications.
