REDHAT

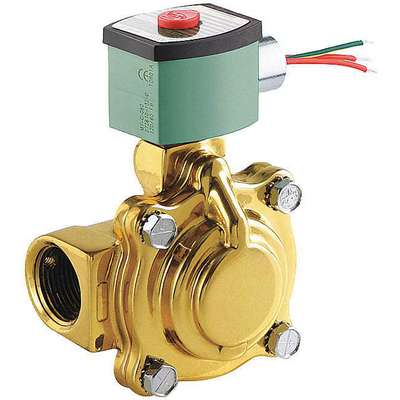

Solenoid Valve: 1 in Pipe Size - Valves, 120V AC, 5 psi Min. Op Pressure Differential, Brass, H
Hover over image to magnify
#918897-3 | Pkg Qty: 1
$376.80 pkg | $376.80 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CSA
NEMA Rating
1, 2, 3, 3S, 4, 4X
Body Material
Brass
Overall Height
5-5/8 in.
Brand
REDHAT
Overall Length
3-3/4 in.
Coefficient of Volume
13
Overall Width
3-1/3 in.
Configuration
Normally Closed
Package Quantity
1
Electrical Connections
1/2 in. Conduit w/18 in. Leads
Pipe Size
1 in.
Hz
50/60
Shipping Weight
4.34 lb.
Item
Solenoid Valve
Valve Design
2-Way/2-Position
Maximum Fluid Temperature
180°F
Voltage
120 VAC
Media Type
Air/Inert Gas, Light Oil and Water
orifice Dia._spec_s
1 in.
Mfr. Part Number
HT8210G004
General
Application
Car Wash, Air Compressors, Pumps, Laundry Equipment, Industrial Water Control
Max. Operating Pressure Differential Water
150 psi
Body Material - Valves
Brass
Media - Valves
Air, Inert Gases, Light Oil, Water
Center Line Pipe Center Size
4 in
Min. Operating Pressure Differential
5 psi
Coil Enclosure
Watertight Junction Box
Pipe Size - Valves
1 in
Coil Insulation Class
H
Seal Material - Valves
NBR
Environmental Rating - Valves
Indoor, Outdoor
Solenoid Valve Product Group
Solenoid Valve
Max. Operating Pressure Differential Air/Inert Gas
150 psi
Valve Configuration
Normally Closed
Max. Operating Pressure Differential Light Oil
100 psi
Valve Ways and Positions
2-Way/2-Position
Product Description
This solenoid valve is suitable for for liquid, corrosive, and air/inert gas service in applications such as car washes, air compressors, pumps, laundry equipment, and industrial water control.
Expertly Selected Product Pairings
Item Barcode
Solenoid Valve,2/2,1In,Nc,120/
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4ELE9 | Solenoid Valve,2/2, |
 | UNSPSC CODES | 40141605 | |
 | VMRS (ATA) CODES | 053-006-009 | Solenoid Valve,2/2, |
