NICHOLSON

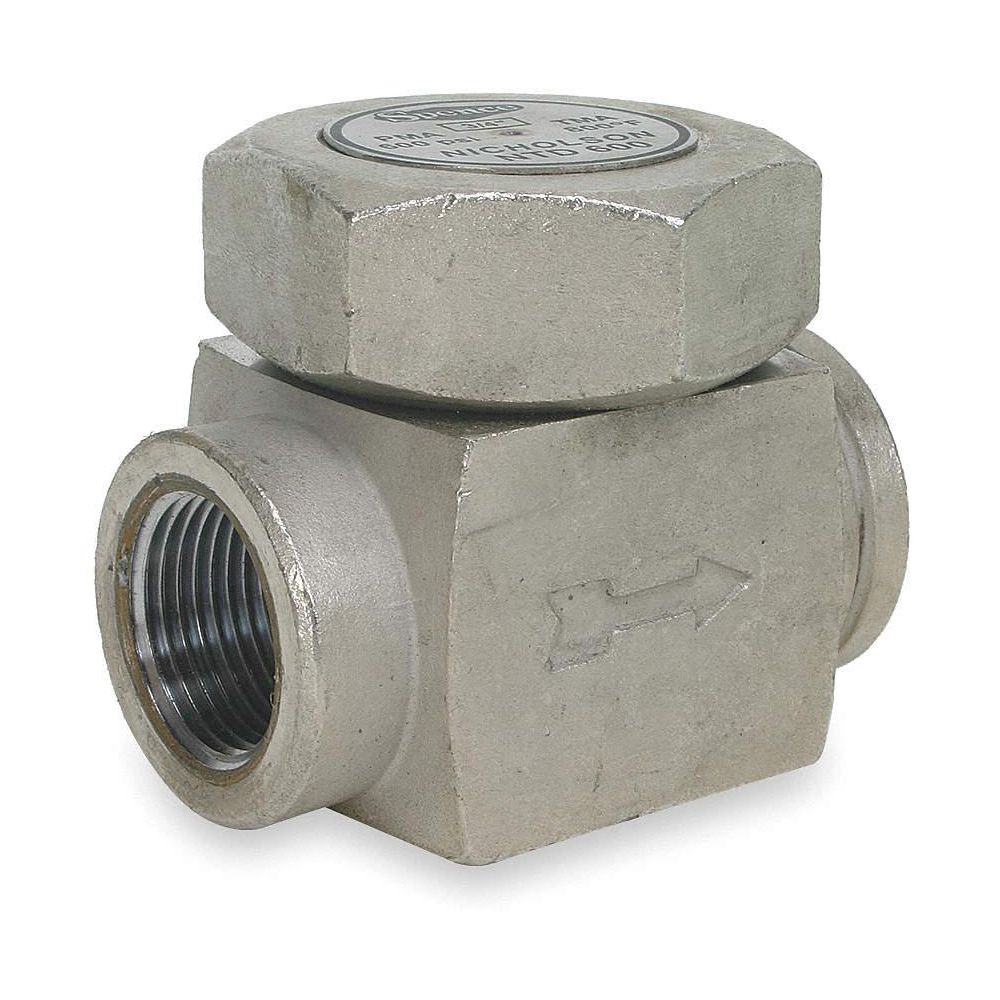

Nicholson Steam Trap, 3/4" (F)NPT Connections, 2-13/16" End to End Length, Condensate Capacity Lbs/Hr 3050
Hover over image to magnify
#918884-5 | Pkg Qty: 1
$373.43 pkg | $373.43 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
NICHOLSON
Maximum Operating PSI
600 psi
Item
Steam Trap
Mfr. Part Number
NTD600-N1D9A
Length
2-13/16 in.
Package Quantity
1
Material
Stainless Steel
Shipping Weight
2.2 lb.
General
(F)NPT Connections
3/4 in
End to End Length
2 13/16 in
Condensate Capacity Lbs/Hr
3,050 lb/hr
Max. Temp.
800 Degrees F
Disc Material
Stainless Steel
Pipe Configuration
Straight
Downstream PSI Range
600 psi
Product Description
Controls steam and condensate movement to maximize removal of latent heat from steam for efficient system operation. Stainless steel internal components. Compact trap can handle water hammer and superheat; installs easily in any position. The audible discharge makes checking operation simple. Suitable for use in kettles, steam main drips, and steam tracing.
Expertly Selected Product Pairings
![Tuf-Set[tm] Pipe Thread](/ProductImageThumbs120/64/16/PI_Asset_1186416.jpg)
Item Barcode
Steam Trap,800F,Stainless
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4DXL9 | Steam Trap, 800F, |
 | UNSPSC CODES | 40142503 | |
 | VMRS (ATA) CODES | 053-006-009 | Steam Trap, 800F, |
