HUBBELL WIRING DEVICE-KELLEMS

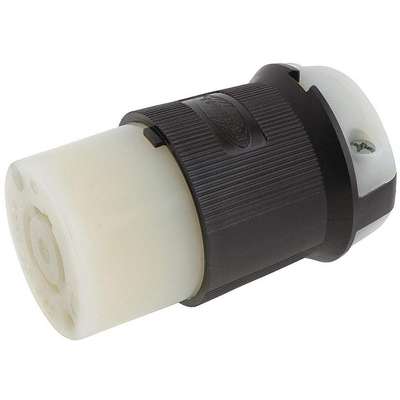

Hubbell Wiring Device-Kellems 20 Amp Industrial Grade Locking Connector, L14-20R NEMA Configuration, Black/White
Hover over image to magnify
#918861-3 | Pkg Qty: 1
$83.27 pkg | $83.27 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Accessory Group
C
Maximum Wire Size
8 AWG
Amperage
20 A
Mfr. Part Number
HBL2413
Amps
20 A
Minimum Operating Temperature
-40 °C
Antimicrobial
No
Minimum Wire Size
16 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Configuration - Plugs & Connectors
L14-20
Cap Type
No Cap or Cover
NEMA Plug Configuration
L14-20R
Color Family
Black / White
Number of Poles
3
Connection Orientation
Straight
Number of Wires
4
Contact Material
Brass
Outside Diameter
0.233 in.
Cord Size
0.350 in to 1.150 in
Overall Length
2.33 in.
Corrosion Resistant
No
Package Quantity
1
Current Rating
20 A
Phase
Three
Description
Insulgrip, Grounding
Power Indicator
No
For Environment
Dry
Shipping Weight
.4 lb.
Grade
Industrial/Commercial
Shrouded
No
Grounding
Grounded
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Horsepower
2 hp
Sub-Category
Connectors
Housing Material
Nylon
Type
Insulgrip Twist Lock
IP Rating
IP20
UL 94 Flammability Rating
HB
Item
Locking Connector
Voltage
125/250VAC
Material
Nylon
Voltage Rating
125/250V AC
Material of Construction
Nylon
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
General
Amps - Plugs and Receptacles
20
HP
1 Line to Neutral, 2 Line to Line
Grade - Plugs and Receptacles
Industrial
Product Description
NEMA Twist-Lock® Devices
- Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
Expertly Selected Product Pairings
Item Barcode
Connector,125/250VAC,20A,L14-
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4A266 | Connector, 125/250VAC, |
 | UNSPSC CODES | 39121421 | |
 | VMRS (ATA) CODES | 053-006-009 | Connector, 125/250VAC, |
