DAYTON

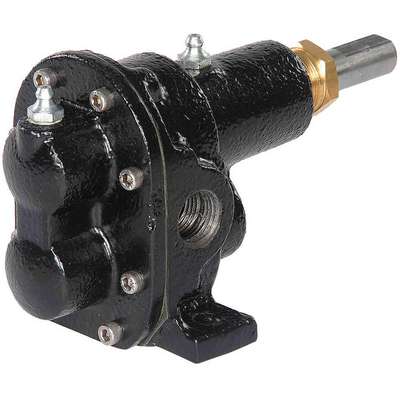

1/2" Light-Duty Cast Iron Rotary Gear Pump Head, Pedestal Design, 100 psi

Hover over image to magnify
Rotary Gear Pump Head, 1/2 In.,
Rotary Gear Pump Head, 1/2 In.,

#918795-9 | Pkg Qty: 1

$187.53 pkg | $187.53 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
DAYTON
Maximum Viscosity
550 SSU
Design
Pedestal
Mfr. Part Number
4KHK4
Duty Rating
Light
Mfr. Warranty Length
1 Year
GPM @ 100 PSI
10.2
O-Ring
Viton
GPM @ 25 PSI
10.7
Pack Quantity
1
GPM @ 50 PSI
10.6
Port Size
1/2 in.
GPM @ 75 PSI
10-1/2
Pump Body Material
Cast Iron
GPM @ Freeflow
10.8
Pump RPM
1725
GPM @ Freeflow @ 1725 RPM
10.8
Recommended Motor HP
1-1/2
Gear
Steel Spur
Relief Valve
Without
HP @ 100 PSI
1-1/2
Seal
PTFE, Kevlar® Packing
HP @ 25 PSI
3/4
Shaft Diameter
0.63 in.
HP @ 50 PSI
1
Shaft Height
2-5/8 in.
HP @ 75 PSI
1
Shaft Material
Steel
HP @ Free Flow
3/4
Shipping Weight
9.5 lb.
HP @ Free Flow @ 1725 RPM
3/4
Suction Lift
12.3 ft.
Height
4 in.
Suction Lift @ 1725 RPM
12.3 ft.
Item
Rotary Gear Pump Head
Temperature Range
-20 deg. F to 210 deg. F
Length
7 in.
Type
Light Duty
Maximum Pressure
100 psi
Width
3-5/8 in.
Maximum Temperature (Deg. F)
210
General
Body Material
Cast Iron
Operating Temperature - Maximum
210 Degrees F
Connection
1/2 in NPT
Operating Temperature - Minimum
-20 Degrees F
Connection Size
1/2 in
Overall Height
4 in
Connection Type
NPT
Overall Length
7 in
Flow Rate @ 100 psi
10.2 gpm
Overall Width
3.8 in
Flow Rate @ 25 psi
10.7 gpm
Required Horsepower
1 1/2 hp
Flow Rate @ 50 psi
10.6 gpm
Seal Material
Kevlar, PTFE
Flow Rate @ 75 psi
10.5 gpm
Seal Type
Packing
Gear Design
Spur
Shaft Length
2 5/8 in
Gear Material
Steel
Shaft Outer Diameter
5/8 in
Motor Mounting Type
Pedestal
Suction Lift - Maximum
12.3 ft
Operating Pressure - Maximum
100 psi
Viscosity - Maximum
550 SUS
Operating Temp. Range
-20 Degrees F to 210 Degrees F

Product Description

Dayton rotary gear pump features self priming and positive displacement, designed to handle high viscous fluids. The rotary gear pump is used in wide variety of applications including industrial, agricultural, marine, domestic, and commercial apartments. In addition to being bidirectional, the cast iron pump is designed to handle oil-based fluids, not used with water-based fluid. The pump can be used for low speed operation and pulseless flow.
