SCHNEIDER ELECTRIC

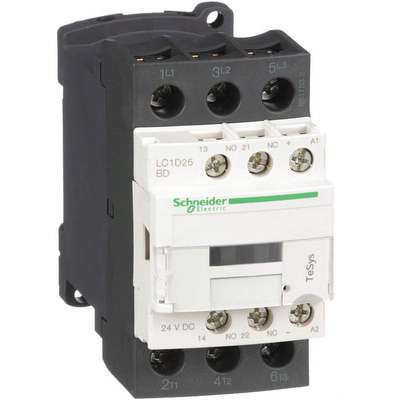

Schneider Electric 24VDC IEC Magnetic Contactor; No. of Poles 3, Reversing: No, 25 Full Load Amps-Inductive

Hover over image to magnify
Iec Magnetc Cntactr,24VDC,25A,
PI_Asset_1370468
Iec Magnetc Cntactr,24VDC,25A,
PI_Asset_1370468

#918781-1 | Pkg Qty: 1

$252.10 pkg | $252.10 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Action
Nonreversing
Item
IEC Magnetic Contactor
Brand
SCHNEIDER ELECTRIC
Mfr. Part Number
LC1D25BD
Coil Volts
24 VDC
Number of Poles
3
Depth
3.62 in.
Package Quantity
1
Enclosure NEMA Rating
No Enclosure
Reversing
No
Enclosure Type
Open
Series
TeSys
Height
3.36 in.
Shipping Weight
1.3 lb.
Hz
50/60
Width
1.77 in.
General
Aux. Contact Configuration
1NO/1NC
HP @ 1 Phase - 240V
3 hp
Auxiliary Contact Form
1NC/1NO
HP @ 3 Phase - 575V
20 hp
Contactor Type
IEC
Standards
UL, CSA
Full Load Amps-Resistive
40 A

Product Description

For use in industrial motor control applications and suitable for DIN rail or panel mounting. You can combine a contactor with an overload relay to make a complete motor starter. Model comes with saddle clamp terminals, inclined wire guides, captive screws, and is IP20 touch-safe with removable terminal cover. Designed for a mechanical life of 15 million operations. Contactor includes built-in auxiliary contacts.
