WHITE RODGERS

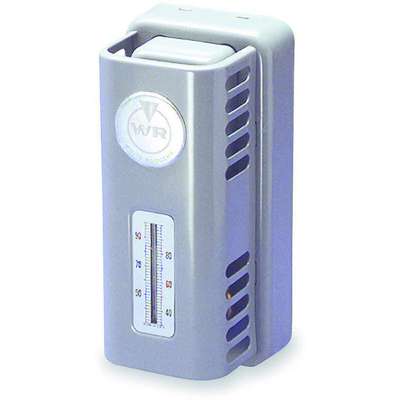

White Rodgers Line Volt Mechanical Tstat for Commercial and Residential, 120 to 240VAC

Hover over image to magnify
Line Volt Mechanical Tstat,120
PI_Asset_1364311
Line Volt Mechanical Tstat,120
PI_Asset_1364311

#918628-9 | Pkg Qty: 1

$206.51 pkg | $206.51 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
WHITE RODGERS
Mfr. Part Number
01 52 009S1
Color Family
Gray
Mounting Position
Vertical
Depth
2-1/4 in.
Package Quantity
1
Differential
2°F
Shipping Weight
1.8 lb.
Display
Analog
Switch Type
SPST
Height
4-1/2 in.
Voltage
120 to 240 VAC
Item
Line Voltage Mechanical Thermostat
Width
4-1/2 in.
General
Compatible System Type
Electric Heating
Maximum Control Temperature
85 Degrees F
Contact Rating Resistive @ 120V
25 A
Minimum Control Temperature
55 Degrees F
Contact Rating Resistive @ 240V
22 A
Number of Heating Stages
1
Contact Rating Resistive @ 277V
18 A
Number of Switches
1
Differential Type
Fixed
Remote Control Functions
No Remote Control Included
Features
Heavy Duty
Switch Action
Open on Rise
For Use With
Unit Heaters and Fan Coil Units
Switch Type/Action
SPST, Open on Rise
Full Load Amps @ 120V AC
14 A
System Settings
On
Full Load Amps @ 120VAC
14 A
Temperature Control Range
55 Degrees to 85 Degrees F
Includes
Manual on Position
Temperature Differential
2 Degrees F
Inductive Amps @ 120V
14 A
Temperature Readout
Yes
Key Features
Dustproof Case
Temperature Scale
Fahrenheit
Locked Rotor Amps @ 120V
25 A
Temperature Sensitivity
+/-2 Degrees F
Locked Rotor Amps @ 240V
22 A
Thermostat Type
Line Voltage

Product Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPST, Thermostat Control Range 55 Degrees to 85 Degrees F, Thermostat Voltage 120 to 240V AC, Full Load Amps @ 120VAC 14 A, Full Load Amps @ 240VAC 7 A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating, Remote Sensing Bulb Included No, Switch Action Open on Rise, Number of Switches 1, Differential 2 Degrees F, Height 4 1/2 in, Width 4 1/2 in, Depth 2 1/4 in, Temp. Sensitivity 2 Degrees F, Color Gray
