POWER FIRST

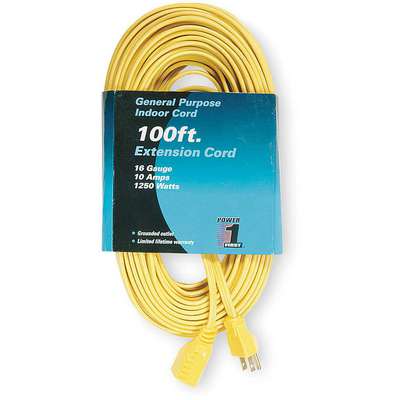

Power First 100 ft. Indoor Extension Cord; Max Amps: 10.0, Number of Outlets: 1, Yellow

Hover over image to magnify
Extension Cord,100 Ft.,10A,16/
PI_Asset_969090
Extension Cord,100 Ft.,10A,16/
PI_Asset_969090

#918590-3 | Pkg Qty: 1

$72.93 pkg | $72.93 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
POWER FIRST
NEMA Connector
5-15R
Cord Ending Type
Single Connector
NEMA Plug Configuration
5-15R
Cord Length
100 ft.
Nominal Outside Diameter
0.16 in. x 0.36 in.
Cord Type
SPT-2
Number of Conductors
3
Extension Cord Length
100 ft.
Number of Outlets
1
Extension Cord Outlet NEMA Configuration
5-15
Package Quantity
1
Extension Cord Plug NEMA Configuration
5-15
Plug Configuration
Straight, No Swivel
Extension Cords Group
90 to 100 ft.
Plug Style
Straight
Gauge/Conductor
16/3
Plug Type
Straight, No Swivel
Indoor/Outdoor
Indoor
Power Indicator
No
Item
Extension Cord
Shape
Flat
Jacket Color Family
Yellow
Shipping Weight
5.1 lb.
Jacket Material
PVC
Temperature Range (Deg. F)
32 to 140 deg. F
Lighted End
No
Type
Flat
Maximum Amps
10 A
Voltage
125 VAC
Maximum Wattage
1,250 W
Watts
1250 W
Mfr. Part Number
1FD60
Wire Size
16 AWG
NEC Cord Designation
SPT-2
General
Cord Shape
Flat

Product Description

Indoor extension cords with a single outlet consist of flexible electrical cable with a plug at one end and a single receptacle at the other end. They are typically used in lengths of 25 ft. or less in indoor environments to provide power when a device's cord is too short to reach an electrical outlet, such as with equipment in laboratories, workshops, and offices. They have a lightweight jacket that is not suitable for wide temperature ranges and therefore should not be used outdoors.

Extension cords are a length of flexible electrical cable used to bring power to a device located up to 100 ft. away. They are typically used when a device's cord is too short to reach a power source, such as an electrical outlet, or where outlets may be scarce. They have a two- or three-prong plug at one end that connects to the power source and a molded outlet at the other end that devices plug into. Extension cords with a single outlet have a single receptacle, while cords with multiple outlets have two or more receptacles. In general, the more power needed by a device, the thicker the extension cord (or lower the gauge) needs to be to support the electrical current flowing through the cord. Extension cords are commonly used to provide temporary power in a wide range of indoor and outdoor applications.
