MASTER LOCK

Master Lock Gate Valve Lockout: Fits 8 in to 13 in Handle Size, 4 Padlocks, 3 in H, 13 in Lg

Hover over image to magnify
Gate Valve Lockout,Fits Sz 8
PI_Asset_1027673
PI_Asset_1027674
Gate Valve Lockout,Fits Sz 8
PI_Asset_1027673
PI_Asset_1027674

#918546-1 | Pkg Qty: 1

$96.36 pkg | $96.36 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
MASTER LOCK
Material
Thermoplastic
Color Family
Red
Maximum Number of Padlocks
4
Diameter
3-1/4 in.
Maximum Shackle Diameter
5/16 in.
Fits Pipe Size
8 in. to 13 in.
Mfr. Part Number
484
Height
3 in.
Package Quantity
1
Item
Gate Valve Lockout
Shipping Weight
2.26 lb.
Legend
Danger Do Not Operate
Temperature Range (Deg. F)
-50 to 350 deg. F
Length
13 in.
Width
17-3/4 in.
General
Fits Handle Size
8 in to 13 in
Padlock Shackle Max. Dia.
5/16 in
For Use With
Gate Valves
Standards
OSHA 1910.148
Max. Shackle Dia.
5/16 in
Valve Handle Dia.
8 to 13"
Max. Valve Handle Thickness
3 in

Product Description

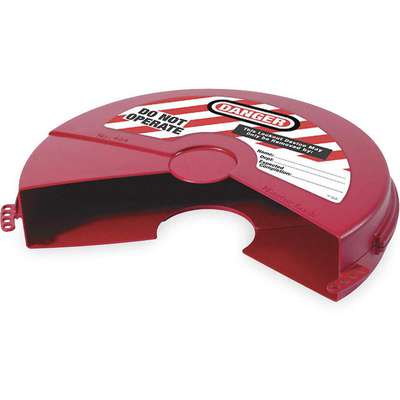

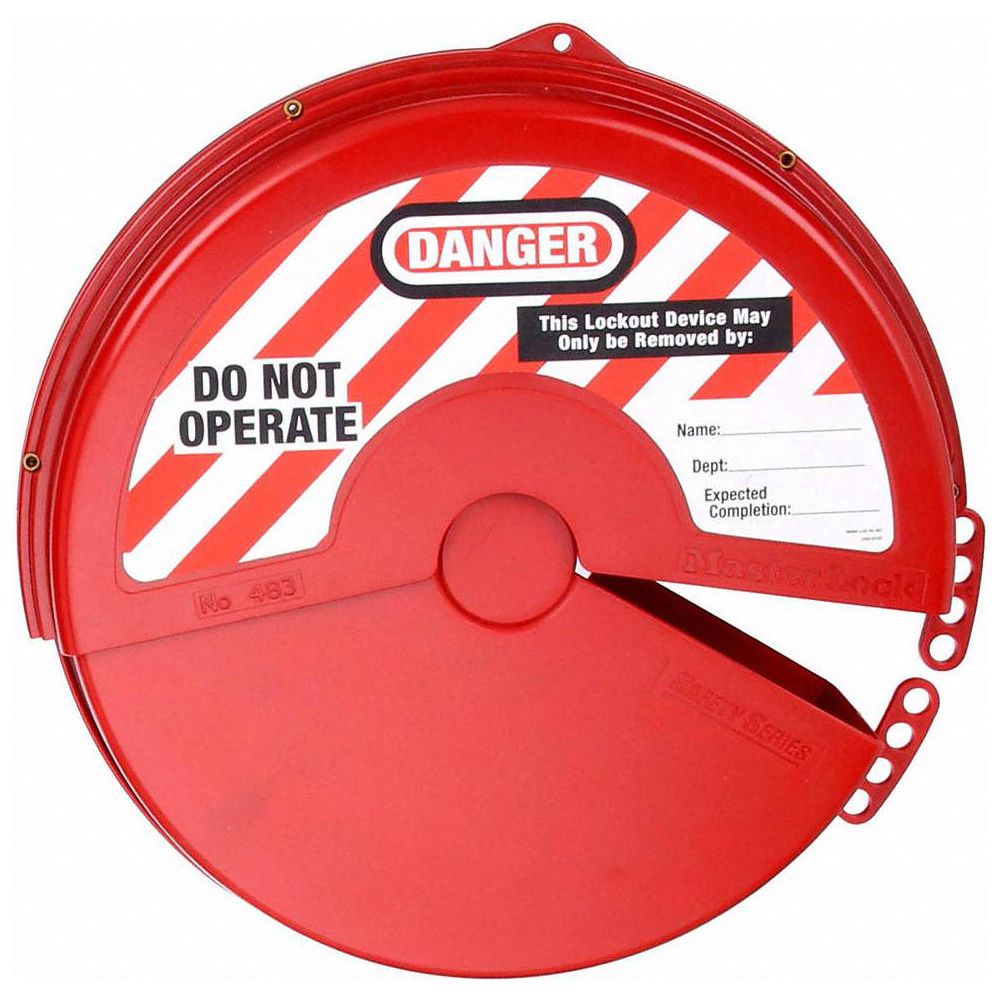

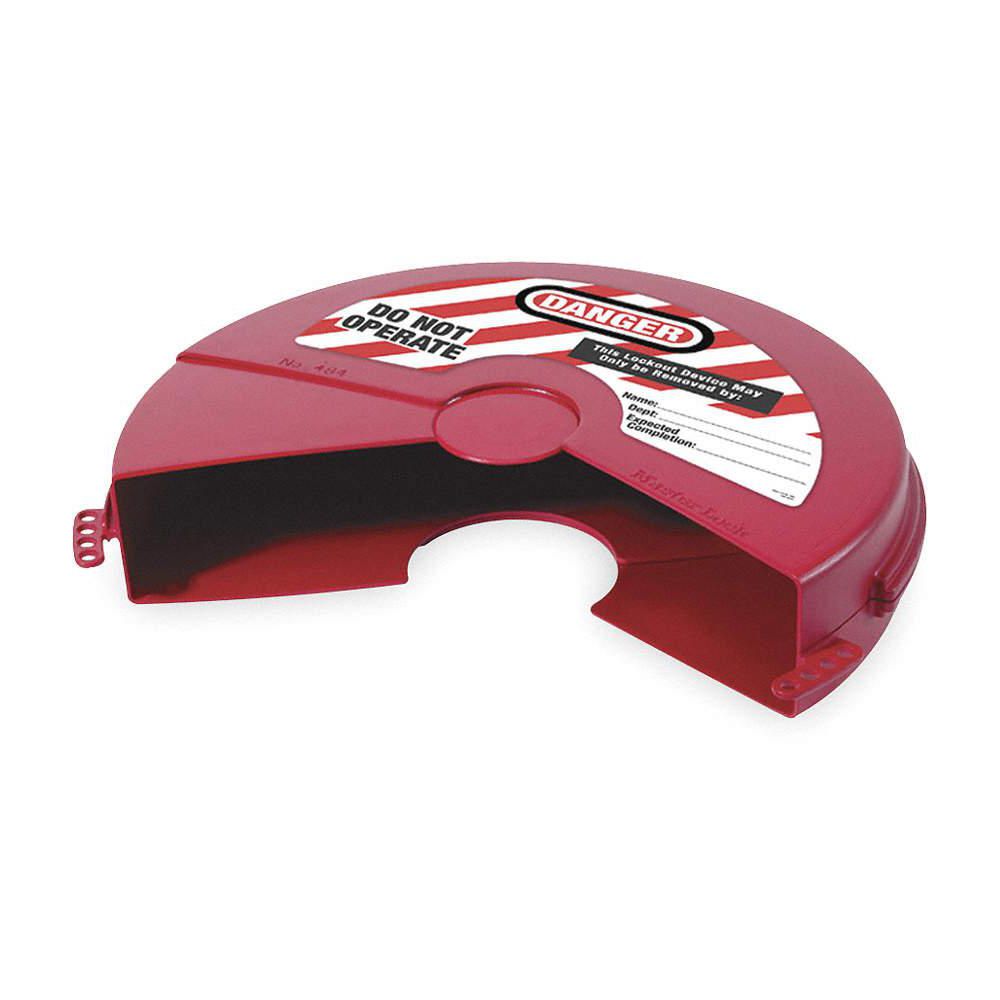

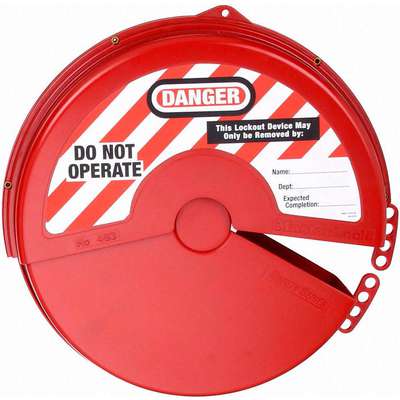

Featuring a 3⅜” (86mm) depth and 4” (101mm) stem opening, this Master Lock® Rotating Gate Valve Lockout surrounds the valve-operating handle to help protect against accidental valve opening. The unique outward/inward rotating design helps offer easier installation in tight areas while the center knockout can be removed to accommodate rising step gate valves. For added safety, the lockout can hold 4 padlocks (sold separately) at one time. To help perform effectively in extreme conditions and be chemically resistant, the body is made of a tough, lightweight dielectric Zenex™ thermoplastic material. The lockout includes highly-visible permanent safety labels in English, Spanish, and French that can be written on to identify the responsible person. For convenient storage, each size nests into the next larger size to help save space. Suitable for locking out 8” (203mm) to 13” (330mm) diameter valve handles in confined spaces and/or as part of a comprehensive OSHA-compliant lockout/tagout safety program.
