CRYDOM

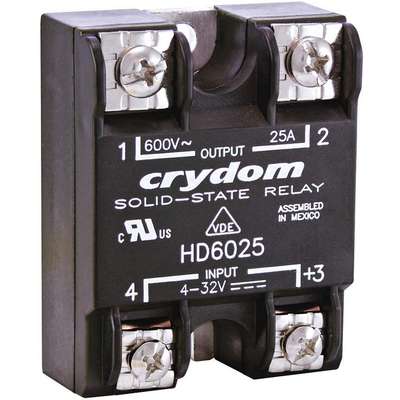

Crydom 1-Pole Surface Mount Solid State Relay; Max. Output Amps w/Heat Sink: 50

Hover over image to magnify
Solid State Relay,4 To 32VDC,
Solid State Relay,4 To 32VDC,

#918522-3 | Pkg Qty: 1

$82.47 pkg | $82.47 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amperage
50 A
Maximum Output w/Heat Sink
50A
Body Depth
2-1/4 in.
Mfr. Part Number
HD4850
Body Height
0.89 in.
Minimum Input Volts
4
Body Width
1-3/4 in.
Minimum Output Volts
48
Brand
CRYDOM
Mounting
Surface
Case Color
Black
Number of Poles
1
Contact Form
SPST-NO
Output or Controlled Voltage
48 to 530 VAC
Finger Safe
No
Overall Height
0.89 in.
Heat Sink
Not Included
Package Quantity
1
Input Power Consumption
0.1 W
Phase
1
Input Voltage
4 to 32 VDC
Relay Turns On At
Zero Crossing
Input or Control Voltage
4 to 32 VDC
Shipping Weight
.2 lb.
Item
Solid State Relay
Switch Type
SCR
Maximum Input Volts
32
Turns On At
Zero Cross
Maximum Output Amps w/Heat Sink
50
Voltage Output
48 to 530VAC
Maximum Output Volts
530
General
Body Depth - Relay
2.25 in
Mounting - Relay
Surface
Body Height - Relay
0.89 in
Mounting - Solid State Relay
Surface
Body Width - Relay
1.75 in
Output or Controlled Voltage Range
48 to 530V AC
Contact Form - Relay
SPST-NO
Overall Height - Relay
0.89 in
Max. Output Amps Without Heat Sink
12.0 A
Standards
UL, CSA, VDE, CE

Product Description

Solid-State Relays

  • Perform well in harsh environments. Epoxy-sealed SCR design allows use in moisture-prone applications.
