SIMPLEX

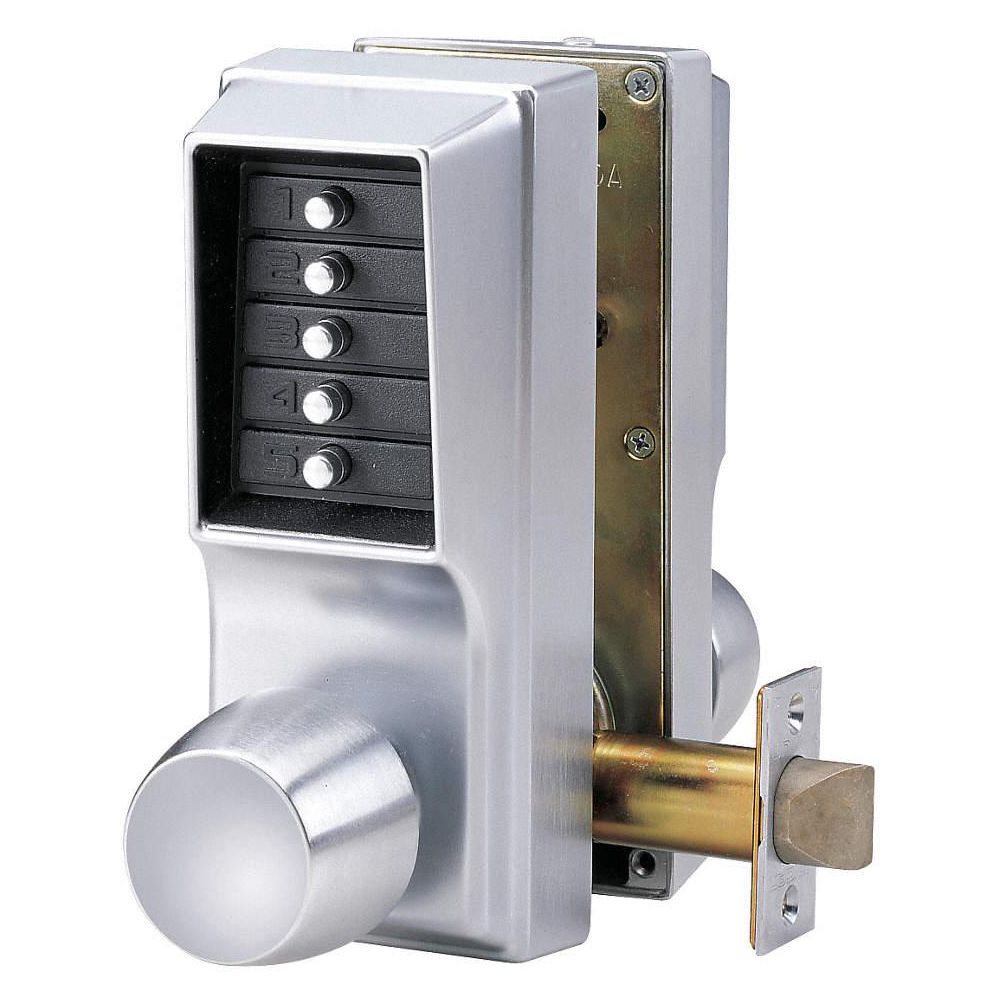

Mechanical Push Button Lockset, 5 Button, Vandal Resistant, Combination Entry and Egress, Satin Chro

Hover over image to magnify
Push Button Lock,Entry And
Push Button Lock,Entry And

#918485-8 | Pkg Qty: 1

$1,113.16 pkg | $1,113.16 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
ADA Compliance
No
Item
Mechanical Push Button Lockset
Brand
SIMPLEX
Mfr. Part Number
EE11/1126D41
Case Material
Zinc
Mfr. Warranty Length
1 yr.
Door Plate Thickness
1-3/4 in. to 2-1/4 in.
Outside Depth
3-3/16 in.
Finish
Satin Chrome
Outside Height
7-3/8 in.
Function
Combination Entry and Egress
Outside Width
3-1/8 in.
Hand
Factory Left, Field Reversible
Package Quantity
1
Handle Type
Knob
Series
EE1000
Inside Depth
2-3/8 in.
Shipping Weight
11.6 lb.
Inside Height
7-3/8 in.
Weather Resistant
Yes
Inside Width
3-1/8 in.
General
Backset
2-3/4 in.
Keypad
5 Button, Vandal Resistant
Door Thickness
1-3/4 in to 2-1/4 in
Latch Front Size
1/2"
Electrical/Mechanical
Mechanical
Latch Length
1/2 in
Fire Rated
3 hr
Max. Proximity Range
At Lock
For Use With
Doors
Max. User Codes
1
Includes
Combination Change Tool, Lock, Manual, Required Installation Hardware, Template
Operating Temp. Range
-31° to 151°F

Product Description

Mechanical Push Button Lockset, Handle Type Knob, Function Combination Entry and Egress, Key Override Options None, Hand Factory Left, Field Reversible, Finish Satin Chrome, Door Thickness 1-3/4 in to 2-1/4 in, Keypad 5 Button, Vandal Resistant, Backset 2-3/4 in, ADA Compliant No, 3 hr Fire Rated, Case Material Zinc, Series EE1000, Latch Length 1/2 in, Max. User Codes 1, Weather Resistant Yes, Includes Lock, Template, Manual, Combination Change Tool, Required Installation Hardware, Mechanical
