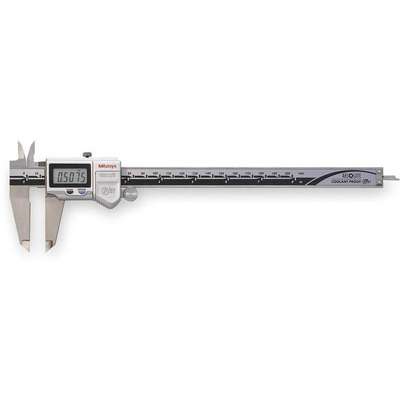

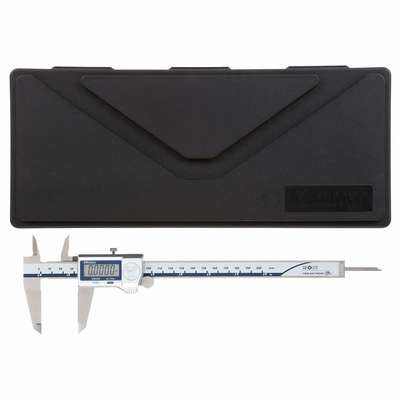

Mitutoyo Digital Caliper 0-8"/0-200mm Range, 0.0005"/0.01mm Resolution, Stainless Steel

Hover over image to magnify
Absolute Digital Caliper,0 To
PI_Asset_947054
Absolute Digital Caliper,0 To
PI_Asset_947054

#918485-1 | Pkg Qty: 1

$341.24 pkg | $341.24 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Absolute Positioning
Yes
Material
Stainless Steel
Accuracy
±0.001 in./0.025mm
Meets
IP67 Standards
Brand
MITUTOYO
Mfr. Part Number
500-753-20
Calibration Certificate
No
Output
No
Caliper Material
Stainless Steel
Package Quantity
1
Caliper Range
0-8 in./0-200mm
Range
0-8 in./0-200 mm
Characteristics
Rolling Thumb Wheel, Auto On/Off, Control Buttons on Face, Origin/Zero and Inch/mm, Absolute Scales
Resolution
0.0005 in./0.01mm
Display
Large LCD
SPC Output
No
IP Rating
67
Shipping Weight
1.25 lb.
Item
Digital Caliper
Type
Electronic, Waterproof, Oilproof
General
Application
Remembers the Measuring Position Even After Gauge Switched Off
Jaw Shape
Standard
Battery Size
SR44
Linear Encoder Type
Electromagnetic Induction
Case Type
Plastic Case
Maximum Measurement - Inch
8 in
Coolant Resistant
Yes
Maximum Measurement - mm
200 mm
Depth Rod Shape
Rectangular
Measurements
4-Way
Dust Resistant
Yes
Measures Depth
Yes
Features
Coolant Proof, Rolling Thumb Wheel, Auto On/Off, Control Buttons on Face, Origin/Zero and Inch/mm, Absolute Scales, Waterproof, Oilproof
Measures Inside Dimension
Yes
Graduations - Lower Scale
0 in
Measures Outside Dimension
Yes
Graduations - Upper Scale
6 in
Measures Step
Yes
Included Certification
TUV Rheinland Certification; Certificate of Inspection
Minimum Measurement - Fractional Inch
0 in
Includes Battery
Yes
Minimum Measurement - Inch
0 in
Includes Case
Yes
Minimum Measurement - mm
0 mm
Jaw Actuation Type
Thumb Wheel
With Locking Nut
Yes
Jaw Depth - Upper Jaw
25/32 in

Product Description

These IP65, IP66, and IP67 digital calipers have adjustable jaws that slide along a beam to measure between two opposite sides of a tool or part. IP65 calipers offer protection against solids and dust particles. IP65 calipers protect against low-pressure liquid jets, while IP66 calipers offer protection from high-pressure liquid jets. IP67 calipers provide protection against short-term immersion in liquids including water, coolants, and other metalworking fluids.
