MAG-MATE

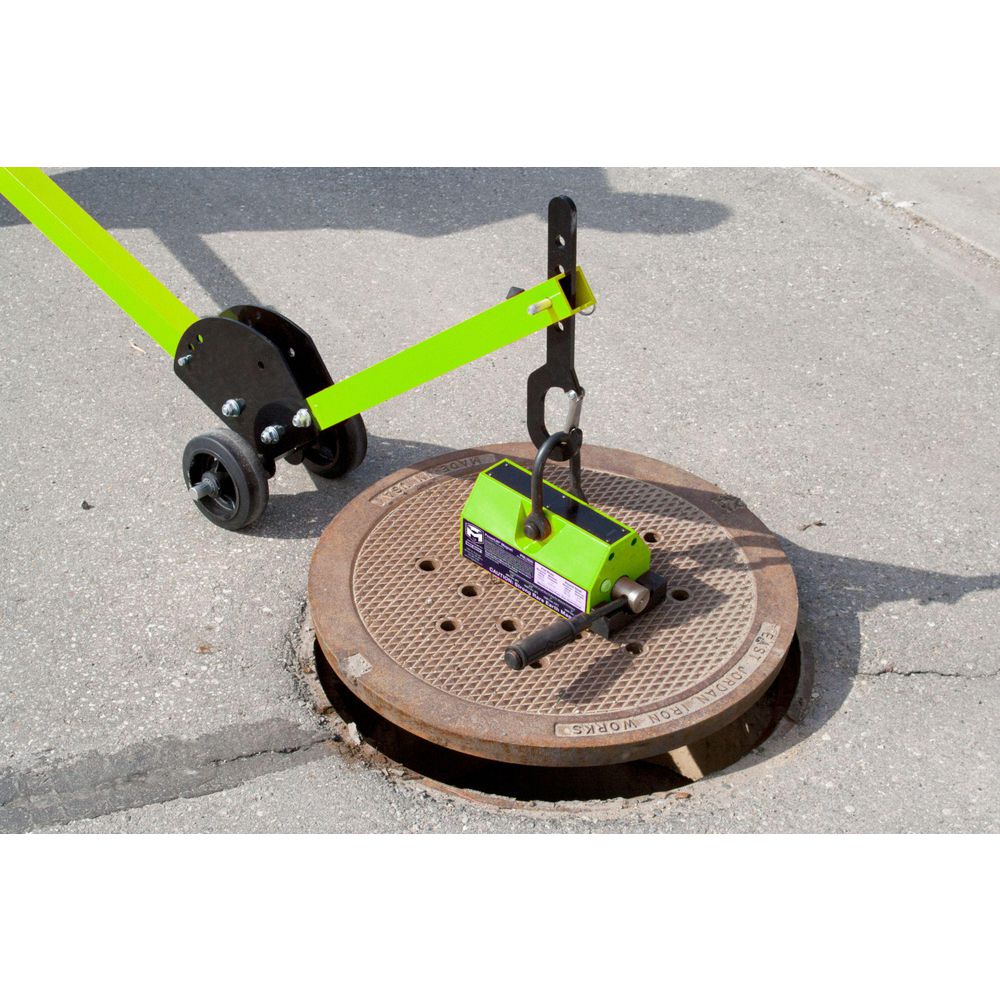

Mag-Mate Lifting Magnet: 800 lb Max. Rated Flat Capacity, Locking On/Off Handle, 7 7/8 in Overall Lg
Hover over image to magnify
#918477-7 | Pkg Qty: 1
$740.22 pkg | $740.22 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
MAG-MATE
Overall Height
8-7/8 in.
Footnotes
Max. Rated Capacities Based On Clean, Polished Steel and Dependant on Material Thickness and Size. Minimum Material Thickness: 1/4 in.
Overall Length
7-7/8 in.
Handle Length
6-7/8 in.
Overall Width
3-5/8 in.
Item
Lifting Magnet
Package Quantity
1
Magnet Activation
Locking On/Off Handle
Shipping Weight
22 lb.
Maximum Rated Flat Capacity
800 lb.
Type
Permanent
Mfr. Part Number
PNL0800
General
Bail Opening Height
2 3/8 in
Magnet Width (In.)
3-5/8
Bail Opening Width
1 3/4 in
Max. Heat Resistant Temp.
180°F
Features
RFID Enabled
Max. Rated Capacity @ Min. Activation Thickness
270 lb
Includes
Lock-On, Lock-Off Handle
Max. Rated Flat Capacity
800 lb
Lift Capacity Flat Steel @ Thickness (Lb./In.)
800
Max. Rated Round Capacity
400 lb
Lifting Capacity Round Steel (Lb.)
400
Min. Material Thickness for Activation
1/4 in
Magnet Height
3 7/8 in
Min. Steel Thickness
3/4"
Magnet Height (In.)
3-7/8
Overall Length (In.)
7-7/8
Magnet Length (In.)
6-3/8
Required Material Thickness for Max. Rated Capacity
3 in
Magnet Material
Neodymium
Standards
ASME B30.20
Product Description
Reduces the chance of dropping a load due to a power failure. On Off magnet with a locking system helps ensure that the magnet is ready. Magnet can be used on flat or round surfaces and is suitable for handling steel plates, billets, blocks, and containers. 3:1 design factor.
Item Barcode
Lifting Magnet,800 Lb Cap,7-7/
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2VCA2 | Lifting Magnet,800 |
 | UNSPSC CODES | 24101616 | |
 | VMRS (ATA) CODES | 053-006-009 | Lifting Magnet,800 |
