CHICAGO FAUCETS

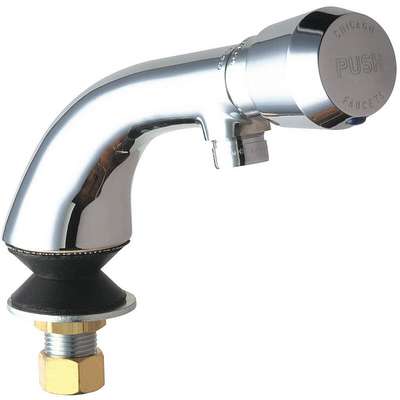

Low Arc Bathroom Faucet: Chicago Faucets, 807, Chrome Finish, 2.2 gpm Flow Rate, 4 in Spout Reach

Hover over image to magnify
Faucet,Metering,Push,1/2 In
Faucet,Metering,Push,1/2 In

#918446-7 | Pkg Qty: 1

$250.91 pkg | $250.91 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
ADA Compliance
Yes
Mfr. Part Number
807-E12-665PAB
Brand
CHICAGO FAUCETS
Mounting
Deck
CEC Compliant
CEC Compliant
Number of Holes
1
Connection Size
1/2 in. NPSM
Operation
Metering
Drain Type
None
Outlet Type
Aerated
Faucet Spout Shape
Straight
Package Quantity
1
Finish
Chrome Plated
Shipping Weight
2.35 lb.
Flow Rate
2.20 gpm
Spout
Integral Cast Rigid
Handle Type
Push Button
Spout Length
4-1/8 in.
Height
4-1/8 in.
Temperature Control
No
Item
Bathroom Faucet
Valve Type
Metering
Material
Brass
General
Faucet Activation
Manual
Max. Mounting Hole Center Distance
Single Hole
Faucet Body Material
Cast Brass
Mounting Type - Faucet
Deck
Faucet Finish
Chrome
Number of Handles
1
Faucet Handle Material
Metal
Plumbing Brand
Chicago Faucets
Faucet Handle Type
Metering
Replacement Cartridge Mfr. Model Number
671-XJKABNF
Faucet Installation Style
Single Hole
Spout Height
2 3/4 in
Faucet Type
Bathroom Sink Faucet
Spout Reach
4 in
Features
Mounting Hardware Included
Standards
ASME A112.18.1/CSA B125.1 California Health andSafety Code 116875(AB 1953-2006) Vermont Bill S.152 NSF/ANSI 372 Low Lead Content Certified to NSF/ANSI 61;Section 9 by CSA ADA ANSI/ICC A117.1
Flow Outlet Type - Faucet
Aerated
Valve Type - Faucets
Cold Cartridge
Green Certification/Other Recognition
California Energy Commission (CEC) Certified
Vandal Resistant Features
Vandal Resistant Handles
Includes
Mounting Hardware
Water Inlet Connection Size
1/2 in
Max. Installation Surface Thickness
1 7/16 in
Water Inlet Connection Type
Male NPSM

Product Description

Low-arc-spout faucets have short spouts that sit close to the sink basin. They are frequently used on high-traffic sinks in public or commercial areas because they minimize the distance water travels from the spout to the sink, which reduces splashing.

Single-metering-handle single-hole deck-mount bathroom faucets have one handle that users manually push down on to activate the faucet. They let users control the start of the flow of water but not the duration, as the water flow shuts off automatically. Metering-handle faucets can be used to save water in public or high-traffic restrooms. They do not require users to grip the handle, which allows people with disabilities or limited mobility to operate the faucet. These faucets combine the hot and cold water supplies to come out through a single spout, and they provide water for handwashing and grooming tasks. Single-hole deck-mount faucets install into one hole on a flat surface, such as a sink or counter.
