BURNDY

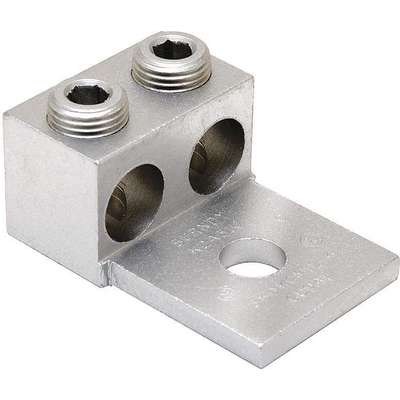

Burndy Mechanical Connector, Tin-Plated Aluminum, Max. Conductor Size: 2/0 AWG Stranded
Hover over image to magnify
#918297-7 | Pkg Qty: 1
$13.74 pkg | $13.74 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Aluminum Alloy
Minimum Conductor Size
14 AWG Stranded
Brand
BURNDY
Number of Conductors
2
Connector Type
Lug
Pack Quantity
1
Item
Mechanical Connector
Shipping Weight
.01 lb.
Length
1.47 in.
Stud Size
1/4 in.
Material
Tin-Plated Aluminum
Stud/Tab Size
1/4 in.
Maximum Conductor Size
2/0 AWG Stranded
Type
Commercial
Mfr. Part Number
K2A26U
Width
1-1/4 in.
General
Compatible with Product Type
Aluminum Cable, Copper Cable
No. of Conductors
2
Connection Orientation
Dual Rated Lug
Number of Terminations
2
Contact Finish
Tin
Standards
UL468A-468B Listed, CSA Certified
For Conductor Material
Aluminum, Copper
Tongue Length
0.81 in
For Stranded Copper Wire Size - Maximum
2/0 AWG
Tongue Thickness
0.19 in
For Stranded Copper Wire Size - Minimum
14 AWG
Tongue Width
1.27 in
For Stud Size
1/4 in
Torque
120 in-lb
For Wire Size
1/0 AWG, 10 AWG, 12 AWG, 14 AWG, 1 AWG, 2/0 AWG, 2 AWG, 4 AWG, 8 AWG
Wire Size Ranges
14 AWG – 2/0 AWG
Product Description
This conductor lug is designed for use in commercial applications. It features aluminum alloy construction.
