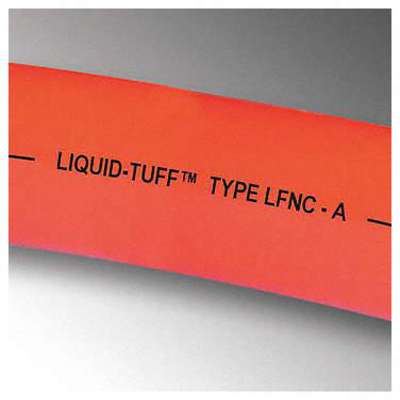

6500-Series Flexible Nonmetallic Liquid Tight Conduit, 1-1/4" x 100 ft., 8" Bend, Orange

Hover over image to magnify
Liquid-Tight Conduit,1-1/4 In
Liquid-Tight Conduit,1-1/4 In

#918290-8 | Pkg Qty: 1

$1,816.12 pkg | $1,816.12 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Bend Radius
8 in.
Jacket Color
Orange
Brand
APPROVED SUPPLIER
Jacket Material
Flame Retardant PVC
Color Family
Orange
Length
100 ft.
Conduit Size
1-1/4 in.
Liquid Tight Conduit Application
Nonmetallic, Constant Flexing
Conduit Trade Size
1-1/4 in.
Material
PVC
Core Material
Dual Layer of PVC with Nylon Braid
Mfr. Part Number
6505-30-00
Flammability Rating
UL 1660
Nominal Length
100 ft.
Flexible Conduit Bend Radius
8 in.
Outside Diameter
1.8 in.
Flexible Conduit Color
Orange
Pack Quantity
1
Flexible Conduit Core Material
Dual Layer of PVC with Nylon Braid
Series
6500
Flexible Conduit Nominal Length
100 ft.
Shipping Weight
73 lb.
Flexible Conduit Usable Temperature Range
-2 deg. F to 176 deg. F
Standards
UL1660 & CSA 22.2 No. 227.2 Type A, Conforms to The Requirements Of Section 14.5.5 Of The Electrical Standard For Industrial Machinery NFPA-79, RoHS and WEEE Compliant
Indoor/Outdoor Usage
Outdoor Only
Temperature Range
-2 deg. F to 176 deg. F
Inside Diameter
1.370 in.
Trade Size
1-1/4 in.
Item
Flexible Nonmetallic Liquid Tight Conduit
Type
Non Metallic Liquid-Tight
General
Approval Rating
CSA, NFPA, UL
Special Features
UL & CSA listed -Type A Construction
Flexibility
Flexible
Special Properties
Oil Resistant, Mild Acid Resistance
Jacketed
Yes
Wet Location
Yes
Resistance Properties
Mild Acid Resistance, Non-conductive Raceway, Oil Resistant, UV Resistant

Product Description

Liquidtight, flexible, nonmetallic conduit/raceway is for use in various applications per the NEC. Suitable for wet locations and exposure to oil, sunlight, and weather. Commonly used to provided a flexible protective conduit for power, control ,and communication cables in moving equipment (such as robotics, escalators, elevators, walkways, lifts, and platforms). Constructed from inner and outer PVC layers with a nylon reinforcing braid in between. Flame retardant. LFNC-Type A. UL listed.

Documents

Liquid-Tuff 6500 Flexible Liquidtight Conduit Specification Sheet
