LIQUIDYNAMICS INC.

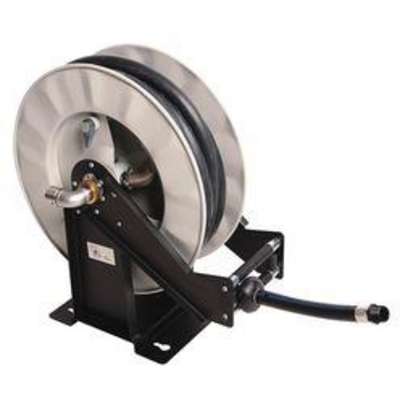

Spring Return Hose Reel: 50 ft (3/4 in I.D.), 3/4 in MNPT, 210 psi Max Op Pressure, Includes Hose

Hover over image to magnify
Spring Return Reel,852 PSI Max
Spring Return Reel,852 PSI Max

#918286-5 | Pkg Qty: 1

$1,528.75 pkg | $1,528.75 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
LIQUIDYNAMICS INC.
Mfr. Part Number
88402DEF-50
Enclosed
No
Number of Guide Arms
Double Arm
Hose Capacity
50 ft. (3/4 in I.D.)
Package Quantity
1
Hose Reel Group
Spring Return Hose Reels
Pedestal Type
Dual Pedestal
Hose Reel Rating
Heavy Duty
Reel Material
Steel
Includes Hose
Yes
Shipping Weight
66.4 lb.
Item
Spring Return Hose Reel
Speed Limited Retraction
No
Maximum Pressure
210 psi
General
Base Motion Type
Stationary
Hose Reel Type
Wall Mount Hose Reel
Bearing Construction
Permanently Lubricated
Hose Tube Material
EPDM
Compatible Chemicals
Acetic Acid 20%, Citric Acid 50%, Ethyl (Ethanol), Isopropyl (Isopropanol), Antifreeze (Coolant), Ethylene Glycol, Glycerin, Sodium Bicarbonate (10%), Formaldehyde 40%, Formaldehyde, Ammonium Hydroxide, Sodium Hypochlorite/Bleach (to 20%), Potassium Hydroxide (50%), Fresh Water, Salt Water, Deionized Water, Sodium Bisulfite, DEF
Includes
Hose Mounted on Reel with Ball Stop
Corrosion-Resistant
Yes
Includes Hose Stop
Yes
DEF Compatible
Yes
Mount Base Height
1 3/32 in
Diesel Exhaust Fluid Compatible
Yes
Mount Base Width
9 1/2 in
Drive Type - Hose Reels
Spring Return
Mount Hole Diameter
7/16 in
Features
Double Arm
Mounting Hole Center to Center Height
9 1/2 in
Finish - Hose Reels
Powder Coated
Mounting Hole Center to Center Width
5 3/4 in
Fitting Gender
Male x Male
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 80%, Chromic Acid 5%, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 50%, Formic Acid, Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (to 10%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Acetone, Methyl Ethyl Ketone (MEK), Methyl (Methanol), Calcium Chloride, Cyclohexane, Gasoline, Heptane, Hexane, Kerosene, Stoddard Solvent (Mineral Spirits), Diesel Fuel, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Ethyl Acetate, Biodiesel, Hydrazine, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Lacquer Thinners, Toluene, Xylene, Motor Oil, Methyl Chloride, Sodium Bisulfate, Trichlorethylene (50%), E85, Anhydrous Ammonia, Ammonia (Liquids), Automatic Transmission Fluid, Brake Fluid, Fertilizers, Fungicides, Herbicides, Lithium Grease, Naphtha, Paint, Paint Thinner, Pesticides, Turpentine, Windshield Washer Fluid
For Media Type
Acetic Acid, Citric Acid, Ethanol, Isopropanol, Antifreeze, Ethylene Glycol, Glycerin, Sodium Bicarbonate, Formaldehyde, Ammonium Hydroxide, Bleach, Potassium Hydroxide (50%), Water, Sodium Bisulfite, DEF
Number of Mount Holes
4
Hose Cover Material
EPDM
Reel Finish
Powder Coated
Hose End Configuration
3/4 in MNPT
Swivel Inlet Gender
Female
Hose Fitting A Material
Polypropylene
Swivel Inlet Size
3/4 in
Hose Fitting A Type
NPT
Swivel Inlet Thread Size
3/4 in - 14
Hose Fitting B Material
Polypropylene
Swivel Inlet Type
NPT
Hose Fitting B Type
NPT
Swivel Material
Stainless Steel
Hose Inside Dia.
3/4 in
Swivel Outlet Gender
Male
Hose Outlet
3/4 in (M)NPT
Swivel Outlet Size
3/4 in
Hose Outside Dia.
3/4 in
Swivel Outlet Thread Size
3/4 in - 14
Hose Reel Primary Application
DEF
Swivel Outlet Type
NPT

Product Description

DEF spring-return hose reels hold various lengths and diameters of DEF hose to provide a safe dispensing system for diesel exhaust fluid (DEF). The hoses used with these reels dispense DEF (diesel exhaust fluid) for late model diesel engines and for emerging greener DEF service stations in marinas, truck stops, and garages. These heavy-duty steel reels are powder-coated for corrosion resistance and have stainless steel external full-flow swivels and chemical-resistant seals. These low-pressure (up to 500 psi) reels mount on the floor, wall, or the ceiling, and include an adjustable guide arm. The spring-return, also called self-retracting, spring-driven, or spring rewind, allows users to manually rewind hose onto the reel without an external power source. The spring-return has a locking ratchet and pawl that locks into place once users have pulled the hose to the desired length. The ratchet is released by pulling the hose out, and then hose can be rewound onto the reel. These DEF hose reels are used with DEF hoses for vehicle refueling, fuel/lube trucks, and in DEF storage and dispensing systems.
