LIBERTY

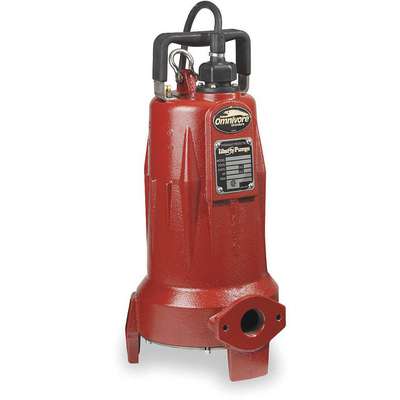

2 HP Grinder Pump, 3-Phase Motor, 108 ft. Max Head, Silicon Carbide, Viton Shaft Seal

Hover over image to magnify
Grinder Pump, 2 Hp, 440-460
PI_Asset_968871
Grinder Pump, 2 Hp, 440-460
PI_Asset_968871

#918276-8 | Pkg Qty: 1

$2,056.44 pkg | $2,056.44 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
CSA C/US
Horsepower
2
Amps
5.3 A
Housing Material
Cast Iron
Base Material
Cast Iron
Hz
60Hz
Bearing Type
Upper and Lower Ball
Impeller Material
Stainless Steel
Brand
LIBERTY
Input Phase AC
3
Cord Length
25 ft.
Item
Grinder Pump
Diameter
9-1/2
Maximum Head
108 ft.
Discharge NPT
1-1/4 in. F
Maximum Liquid Temperature
140°F
Duty
Intermittent
Maximum Temperature (Deg. F)
140
Engine RPM
3450
Mfr. Part Number
LSG204M
GPM of Water @ 10 Ft. of Head
50
Mfr. Warranty Length
3 Yr.
GPM of Water @ 100 Ft. of Head
9
Minimum Sump Pit Diameter
24 in.
GPM of Water @ 15 Ft. of Head
50
Motor RPM
3450
GPM of Water @ 20 Ft. of Head
50
Motor Type
3-Phase
GPM of Water @ 25 Ft. of Head
50
Package Quantity
1
GPM of Water @ 30 Ft. of Head
50
Phase
3
GPM of Water @ 35 Ft. of Head
50
Pump Body Material
Cast Iron
GPM of Water @ 40 Ft. of Head
48
Pump HP
2
GPM of Water @ 45 Ft. of Head
48
Pump RPM
3450
GPM of Water @ 5 Ft. of Head
50
RPM
3450
GPM of Water @ 50 Ft. of Head
47
Shaft Material
316 SS
GPM of Water @ 55 Ft. of Head
45
Shaft Seal
Silicon Carbide/Double Viton Lip
GPM of Water @ 60 Ft. of Head
42
Shaft Seal Material
Silicon Carbide, Viton
GPM of Water @ 70 Ft. of Head
36
Shipping Weight
84 lb.
GPM of Water @ 80 Ft. of Head
27
Switch Type
No Switch Included
GPM of Water @ 90 Ft. of Head
18
Thermal Protection
No
Handle
Yes
Voltage
480 VAC
Height
19-1/2 in.
General
Discharge Dia.
1 1/4 in
Max. Diameter Solids
2 in
Discharge Gender
Female
Min. Sump Pit Dia.
24 in
Discharge Standard
NPT
Phase - Pumps
3
Flow Rate @ 10 Ft. of Head
50 gpm
Rated Voltage
440 to 480V AC
Flow Rate @ 15 Ft. of Head
50 gpm
Shaft Seal Material - Pumps
Silicon Carbide, Viton
Flow Rate @ 20 Ft. of Head
50 gpm
Standards
CSA C/US
Flow Rate @ 40 Ft. of Head
48 gpm
Switch Actuation
No Switch Included
Flow Rate @ 60 Ft. of Head
42 gpm
Switch Electrical Connection
No Switch Included
HP
2 hp

Product Description

These general purpose three-phase 200 to 480V sewage grinder pumps have three-phase motors that are more efficient than one phase, and they use a higher voltage that allows for larger motors that require less current than lower-voltage motors. Pumps shred large particles into small fragments so the waste can be pumped into a sewage system. Three-phase pumps require a control panel.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

LIBERTY LSG200 Series Sell Sheet
LIBERTY LSG200 Series Spec Sheet
LIBERTY LSG202 Installation Manual
