HUBBELL WIRING DEVICE-KELLEMS

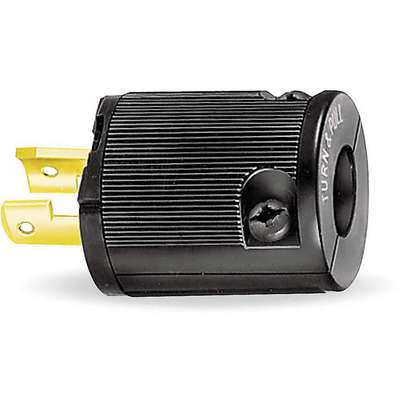

Hubbell Wiring Device-Kellems Midget Locking Plug, 120VAC Voltage, 15 Amps, NEMA Configuration: ML-1P, Number of Wires: 2
Hover over image to magnify
#918267-4 | Pkg Qty: 1
$22.73 pkg | $22.73 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
15 A
Minimum Operating Temperature
-40 °C
Amps
15 A
Minimum Wire Size
18 AWG
Blade Material
Brass
NEMA Configuration - Plugs & Connectors
ML1-15
Body Length
1-1/4 in.
NEMA Plug Configuration
ML1-15P
Body Material
Nylon
Number of Blades
2
Brand
HUBBELL WIRING DEVICE-KELLEMS
Number of Poles
2
Color Family
Black
Number of Wires
2
Connection Orientation
Straight
Outside Diameter
1.06 in.
Cord Size
0.220 in to 0.385 in
Overall Length
1.25 in.
Current Rating
15 A
Package Quantity
1
For Environment
Dry
Phase
Single
For Location
Indoor
Polarized
Yes
Grounding
Non-Grounded
Shipping Weight
.01 lb.
Housing Color
Black
Shrouded
No
Housing Material
Nylon
Standards
Federal Specification W-C-596
IP Rating
IP21
Type
2 Pole 2 Wire
Item
Midget Locking Plug
UL 94 Flammability Rating
HB
Maximum Operating Temperature
75 °C
Voltage
120V AC
Maximum Wire Size
14 AWG
Voltage Rating
125V AC
Mfr. Part Number
HBL7465V
Wire Connection Type
Screw Terminals
Midget Locking
Yes
Wiring Style
Hinged
General
Market
Commercial, Industrial
Resistance Properties
Chemical Resistant, Impact Resistant
NEMA Configuration
ML1-15
Product Description
Locking Devices
- Midget Devices
- Nylon plugs and connector bodies resist impact and abuse. Weatherproof boots protect devices from moisture, dust, metal filings, etc. Angle devices are low profile for use in limited spaces. Valise devices have offset jaw cord grips to prevent strain on terminals. 2-wire valise devices have bundling clamp screw terminals; 3-wire valise devices have insulation displacement terminals. UL Listed and CSA Certified.
