HUBBELL WIRING DEVICE-KELLEMS

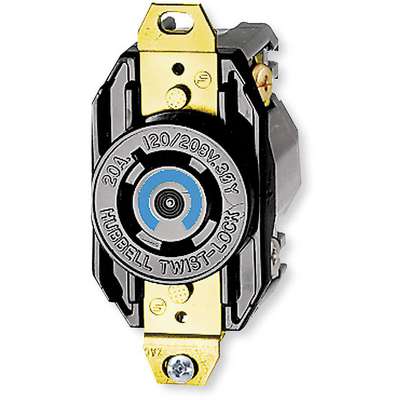

Hubbell Wiring Device-Kellems Black Locking Receptacle, 20 Amps, 120/208VAC Voltage, NEMA Configuration: L21-20R

Hover over image to magnify
Locking Receptacle,Industrial,
PI_Asset_1982960
Locking Receptacle,Industrial,
PI_Asset_1982960
Double tap image to magnify
Locking Receptacle,Industrial,
1X980_1
Locking Receptacle,Industrial,
1X980_1

#918267-1Pkg Qty: 1

$81.19 pkg | $81.19 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 01.
|

Technical Specifications

Key Specifications
Accessory Group
B
Mfr. Part Number
HBL2510
Amperage
20 A
Minimum Operating Temperature
-40 °C
Amps
20 A
Minimum Wire Size
16 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
Mounting Type
Flush Mount
Color Family
Black
NEMA Configuration - Plugs & Connectors
L21-20
Connection Orientation
Straight
NEMA Rating
1
Contact Material
Brass
NEMA Receptacle Configuration
L21-20R
Cover Type
No Cover
Number of Gangs
1
Current Rating
20 A
Number of Poles
4
Flange Width
Not Applicable
Number of Wires
5
For Environment
Dry
Package Quantity
1
Grade
Industrial
Phase
Three
Grounding
Grounded
Plate Code
B
HP
2 HP
Polarized
Yes
Horsepower
2 hp
Shipping Weight
.3 lb.
Housing Color
Black
Shrouded
No
Housing Material
Nylon
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
IP Rating
IP20
Sub-Category
Single Receptacles
Includes
Mounting Hardware
UL 94 Flammability Rating
V-2
Item
Locking Receptacle
Voltage
120/208V AC
Material
Phenolic
Voltage Rating
120/208V AC
Material of Construction
Nylon
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
Maximum Wire Size
8 AWG
General
Flange Type
Non-Flanged
Special Features
Corrosion Resistant

Product Description

NEMA Twist-Lock® Devices

  • Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
