IDEAL

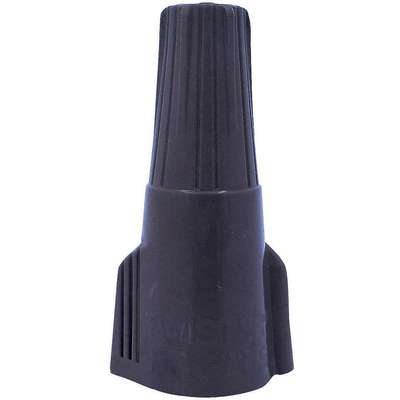

Ideal Twist On Wire Connector, Gray, 60 Series, Max. Wire Combination: (1) 10 AWG with (2) 12 AWG
Hover over image to magnify
#918242-8 | Pkg Qty: 25
$77.50 pkg | $3.10 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Application
Underground
Mfr. Part Number
30-1160
Brand
IDEAL
Minimum Single Wire Size
20 AWG
Color Family
Gray
Minimum Wire Combination
(1) 20 AWG with (1) 18 AWG
Connector Type
60
Minimum Wire Size
20 AWG
Description/Special Features
Silicon Based Sealant Protects Against Moisture and Corrosion, Suitable for Use in a Wide Variety of Direct Burial and Wet Location Electrical Connections
Package Quantity
25
Height
1.69 in.
Series
60
Item
Twist On Wire Connector
Shipping Weight
.4 lb.
Length
0.81 in.
Type
Twist-On
Maximum Single Wire Size
10 AWG
Width
0.64 in.
Maximum Voltage
600 VAC
Wire Connector Style
Wing
Maximum Wire Combination
(1) 10 AWG with (2) 12 AWG
Wire Type
Copper
Maximum Wire Size
10 AWG
General
Compatible with Product Type
Underground
RoHS Compliant
Yes
For Conductor Material
Copper
Special Features
Silicon Based Sealant Protects Against Moisture and Corrosion, Suitable for Use in a Wide Variety of Direct Burial and Wet Location Electrical Connections
For Wire Size
10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG
Strip Length
1/2 in
Max. Temp.
221°F
Twist-On Wire Size Ranges
20 AWG – 10 AWG
Maximum Conductors
4
UL 94 Flammability Rating
V-2
Product Description
Twist on wire connector is used in low-voltage applications where is necessary to fasten multiple conductors together. Thermoplastic shell ensures durability. This connector can be used in wet or damp locations, because its silicone-based sealant will prevent damage from moisture and corrosion.
