HONEYWELL MICRO SWITCH

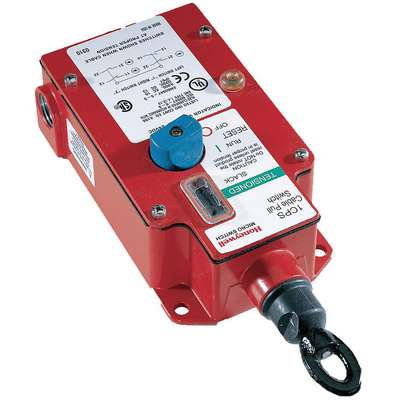

Honeywell Micro Switch Emergency Cable Pull Switch, 10A Thermal Amperage, Contact Form: 1NC/1NO, Silver

Hover over image to magnify
Cable Pull Switch,10A,Sngl,1NC/
Cable Pull Switch,10A,Sngl,1NC/

#918202-7 | Pkg Qty: 1

$659.72 pkg | $659.72 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 600 VAC
Mfr. Part Number
1CPSA1A
Brand
HONEYWELL MICRO SWITCH
Mounting Style
Single End
Case Material
Zinc Die Cast
NEMA Rating
1, 4, 12, 13
Contact Form
1NC/1NO, Silver
Operating Force
3 to 5 lb.
Contact Type
1NC/1NO, Silver
Package Quantity
1
DC Contact Rating
2.5 A @ 24 VDC
Reset Type
Rotary Knob
Depth
2.57 in.
Shipping Weight
4.5 lb.
IP Rating
67
Switch Function
Maintained
Indicator
24VDC Red LED
Type
Emergency, Maintained
Item
Emergency Cable Pull Switch
Width
3.9 in.
Length
10.62 in.
Wiring Entry
1/2 in. NPT
General
Cable Connection Location
Left or Right
Minimum Current
50mA to 10A
Environmental Protection
IP67
Operating Position
Single End
For Use With
Microswitch CPS Accessories
Reset
Rotary Knob
Maximum Cable Span
250 ft.
Standards
CSA Certified, CE Marked, SIL 3 Capable, Low Voltage Directive 73/23/EEC, as Amended By Directive 93/68/EEC, Machinery Directive 98/37/EEC Only as the Directives Relate to the Components Being Used in a Safety Function, EN60947-1, EN-60947-5-1, EN60947-5-5
Maximum Switching Current (Amps)
AC15 A300 / DC13 Q300
Switching Ability
Single Cable
Maximum Switching Voltage
300VAC/300VDC
Thermal Amperage
10 A
Mechanical Life
1000000

Product Description

This emergency cable pull switch is designed to provide a readily accessible emergency stop signal.

As an alternative to multiple emergency stop push-buttons, the switch can be used as a means of personnel safeguarding to prevent further injury or damage to equipment when used for emergency stop signaling.

It is also designed to provide emergency stop protection for exposed conveyor and assembly lines. The internal mechanism latches on both slackened cable and pulled cable, which helps to eliminate nuisance stops due to variations in temperature, stretch of cable over time, and other application variables.
