1/4 HP Residential Dewatering Pump with 120VAC Voltage and Discharge NPT 1-1/4" F, 20 ft. Cord Leng

Hover over image to magnify

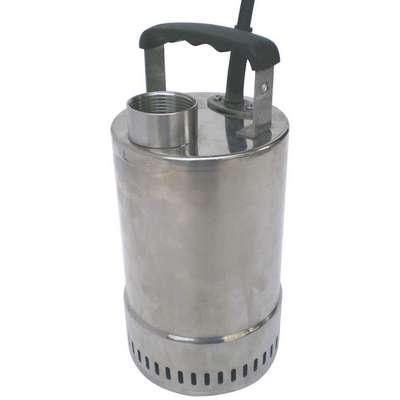

Submersible Dewatering Sump
PI_Asset_1369531
Submersible Dewatering Sump
PI_Asset_1369531

#918162-8 | Pkg Qty: 1

$305.93 pkg | $305.93 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Action
A
Maximum Head
20 ft.
Agency Compliance
CSA US
Maximum Liquid Temperature
104°F
Amps
3.2 A
Mfr. Part Number
11C685
Bearing Type
Dual Ball
Minimum Sump Pit Diameter
12 in.
Brand
DAYTON
Motor Housing
Stainless Steel
Cord Length
20 ft.
Motor RPM
3450
Cord Size
18/3
Motor Type
PSC
Cord Type
SJOW
Package Quantity
1
Diameter
5-5/8 in.
Phase
1
Discharge NPT
1-1/4 in. F
Pump Body Material
Stainless Steel
Duty
Continuous
Pump HP
1/4
GPM @ 1 Ft. of Head
24
Pump RPM
3450
GPM of Water @ 10 Ft. of Head
15
Pump Type
Residential Dewatering
GPM of Water @ 15 Ft. of Head
8
RPM
3450
GPM of Water @ 5 Ft. of Head
21
Shaft Material
Stainless Steel
Handle
Top Carrying
Shaft Seal
Ceramic, Buna N, Stainless Steel
Height
10-5/8 in.
Shaft Seal Material
Buna-N, Ceramic, Stainless Steel
Horsepower
1/4
Shipping Weight
16.5 lb.
Housing
Stainless Steel
Suction
Screened Bottom
Housing Material
Stainless Steel
Switch Type
No Switch Included
Hz
60
Thermal Protection
Automatic
Impeller Material
Stainless Steel
Top Material
Stainless Steel
Input Phase AC
1
Type
Residential Dewatering
Insulation Class
B
Voltage
120 VAC
Item
Residential Dewatering Pump
Width
5-5/8 in.
Length
10-5/8 in.
General
Application
Nonflammable Liquids
Max. Diameter Solids
3/16 in
Body Dia.
5 5/8 in
Max. Liquid Temp.
104 Degrees F
Discharge Dia.
1 1/4 in
Min. Sump Pit Dia.
18 in
Discharge Gender
Female
Minimum Water Depth
12 in
Discharge Standard
NPT
Nominal Voltage
110V AC
Flow Rate @ 10 Ft. of Head
15 gpm
Phase - Pumps
1
Flow Rate @ 15 Ft. of Head
8 gpm
Rated Voltage
120V AC
Flow Rate @ 5 Ft. of Head
21 gpm
Shaft Seal Material - Pumps
Buna-N, Ceramic, Stainless Steel
For Use With
Nonflammable Liquids
Switch Actuation
No Switch Included
Includes
, 1-1/4"MNPT X 1" Barb Adaptor, Hose Adaptor
Width at Widest Point
5 5/8 in

Product Description

These 110 to 120V plug-in utility and dewatering pumps transfer moderate amounts of water on jobsites and accept an inlet hose so they don't have to be placed in the water that needs to be drained. Some pumps come with a switch for automatic on/off operation, while other models allow installation of an automatic switch. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug.
