SPEEDAIRE

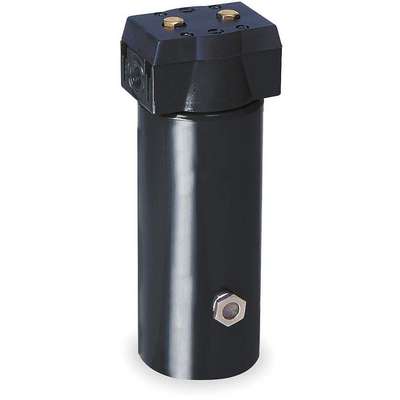

Desiccant Air Dryer: ISO Class 3, 1/4 in NPT, 10 cfm, 200 psi Max Op Pressure, 15 micron
Hover over image to magnify
#918147-4 | Pkg Qty: 1
$1,807.68 pkg | $1,807.68 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
(F)NPT Inlet
1/4 in.
Maximum Operating PSI
175
(M)NPT Outlet
1/4 in.
Maximum SCFM @ 100 PSI
10 psi
Air Consumption
scfm
Mfr. Part Number
5VC90
Brand
SPEEDAIRE
Package Quantity
1
CFM
10
Shipping Weight
9.05 lb.
ISO Class
3
Width
4-1/8 in.
Item
Desiccant Air Dryer
General
Air Inlet Gender
Female
Filtered Substance
Dirt, Dust, Oil, Water
Air Inlet Type
NPT
ISO Class - Air Treatment
3
Air Outlet Gender
Female
Includes
Modular Connection Kit, Mounting Bracket
Air Outlet Size
1/4 in
Max. Flow - Air Treatment
10 cfm
Air Outlet Type
NPT
Max. Incoming Pressure - Air Treatment
175 psi
Application
Branch Lines
Maximum Flow @ 100 psi
10
Bowl
Rugged Metal
Number of Air Inlets
1
Connection Size - Air Treatment
1/4 in NPT
Number of Air Outlets
1
Desiccant Material
Silica Gel
Total Air Capacity
4,600 cu ft
Dew Point (Deg. F)
-4
Total Capacity (Cu.-Ft.)
4600
Dew Point - Air Treatment
-4°F
Total Capacity - Air Treatment
4,600 cu ft
Filter Element Compatibility
HF5-12-4DPL
Product Description
Ideal for drying small volumes of air at the point of use. Protect branch lines exposed to temperatures below freezing. Convenient in-line mounting saves space. Premeasured desiccant packaged in convenient, easy-to-use bags for less waste. ISO Class dryer capacities established at 100°F ambient temp., 100 psig.
Expertly Selected Product Pairings
Item Barcode
Dryer,Desiccant
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5VC90 | Dryer, Desiccant |
 | UNSPSC CODES | 40161509 | |
 | VMRS (ATA) CODES | 053-006-009 | Dryer, Desiccant |
