LITTLE GIANT

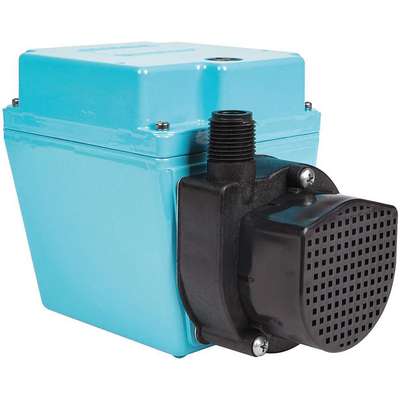

1/15 HP Compact Submersible Pump, 115V Voltage, Continuous Duty, 6 ft. Cord Length
Hover over image to magnify
#918111-6 | Pkg Qty: 1
$285.68 pkg | $285.68 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL
Inlet Fitting Size
1/2 in. FNPT
Brand
LITTLE GIANT
Inlet Type
1/2 in. (F)NPT
Cord Length
6 ft.
Item
Compact Submersible Pump
Duty
Continuous
Length
7 in.
Full Load Amps
3.2
Maximum GPM for Water
8.3
GPH of Water @ 1 Ft. of Head
500
Maximum Head
17.3 ft.
GPH of Water @ 10 Ft. of Head
210
Mfr. Part Number
503103
GPH of Water @ 15 Ft. of Head
65
Outlet
1/2 in. (M)NPT
GPH of Water @ 3 Ft. of Head
435
Outlet Size
1/2 in.
GPH of Water @ 5 Ft. of Head
337
Package Quantity
1
GPH of Water @ 9 Ft. of Head
255
Pump Material
Aluminum
GPM @ 1 Ft. of Head
8
Pump Type
Compact Submersible Centrifugal
GPM of Water @ 10 Ft. of Head
3-1/2
Screen Material
Polypropylene
GPM of Water @ 5 Ft. of Head
5.6
Seal Material
Viton
Height
5-1/2 in.
Shipping Weight
7.55 lb.
Horsepower
1/15
Type
Compact Submersible Centrifugal
Housing Material
Nylon
Use With
Nonflammable Liquids Compatible with Pump Component Materials
Hz
60
Voltage
115 V
Impeller Material
Nylon
Volute Material
Nylon
Inlet
1/2 in. (F)NPT
Width
4-1/2 in.
General
Application
Water
Intake and Discharge Size
1/2 in , 1/2 in
Compatible Discharge Pipe Size
1/2 in
Liquid Temperature Range
30 to 120 deg. F
Compatible Intake Pipe Size
1/2 in
Maximum Feet of Head
16.8 ft
Compatible with Media Type
Oil
Maximum Media Temperature
120 Degrees F
Discharge Type
NPT
Motor Housing Material
Epoxy Coated Cast Aluminum
Features
In-line or Submersible
Motor Sealing
Oil-Filled
Feet of Head (Minimum)
1 ft
Mounting Location
In-Line, Submersible
Flow Rate @ 1 ft of Head (Maximum)
500 gph
Nameplate Voltage
115V AC
Flow Rate @ 10 ft of Head (Maximum)
210 gph
Overload Protection
Yes
Flow Rate @ 15 ft of Head (Maximum)
50 gph
Pump Housing Material
Cast Aluminum
Flow Rate @ 5 ft of Head (Maximum)
337 gph
Pumping Application
Air Conditioners, Machine Tool Coolants, Mild Acids, Recirculation, Submersible, Water Displays, Water Transfer
For Use With
Water
Standards
UL
Intake Type
NPT
Thermal Overload Protection
Yes
Product Description
This Little Giant® compact submersible pump features a die-cast motor housing that’s epoxy-coated for corrosion protection. Ideal for use with coolant systems, wet saws, evaporative coolers, and air conditioning systems.
