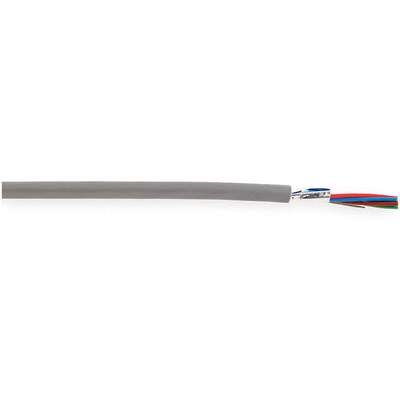

Carol Shielded Communication Cable, 100 ft. Length, Gray Jacket Color, Conductors: 6 (0 Pair)

Hover over image to magnify
Multi Conductor Foil Shield
Multi Conductor Foil Shield

#918086-5 | Pkg Qty: 1

$193.38 pkg | $193.38 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
CAROL
Package Quantity
1
Color Family
Gray
Package Type
Reel in a Box
Communication Cable Application
Computer Systems, Control Systems, Instrumentation Systems
Shielded
Yes
Conductor Size
22 AWG
Shielded/Unshielded
Shielded
Item
Communication Cable
Shipping Weight
3.25 lb.
Jacket Color
Gray
Solid / Stranded
Stranded
Jacket Color Family
Gray
Spool Length
100 ft.
Jacket Material
PVC
Sub-Category
Multi-Conductor
Length
100 ft.
Suggested Voltage Rating
300V
Maximum Voltage
300 V
Temperature Range
-4 deg. F to 176 deg. F
Mfr. Part Number
C0763A
Total Number of Conductors
6 (0 Pair)
NEC Article
NEC Article 800 Type CMR 20 or 22 AWG (UL: 75 Degrees C)
Wire Size
22 AWG
NEC Article/Type
800 CMR
Wire/Cable Jacket Material
PVC
Nominal Outside Diameter
0.219 in.
Wire/Cable Size
22 AWG
Number of Conductors
6
General
Application
Computer Interconnections, Data Transmission, Control Circuits, Industrial Equipment Control, Suitable for EIA RS-232 Applications, Suggested Voltage Rating 300 volts
Package Type - Data Cable
Reel in a Box
Application - Communication Cable
Computer Systems, Control Systems, Instrumentation Systems
Shielded / Unshielded
Shielded
Cable Sub-Category
Multi-Conductor
Standards
UL Style 2464 (UL: 80 Degrees C, 300V), CSA CMG (CSA: 60 Degrees C), RoHS Compliant Directive 2002/95/EC
Conductor Size - Data Cable
22 AWG
Suggested Voltage Rating - Data Cable
300 V
Fire Rating - Data Cable
Riser
Total Number of Conductors - Data Cable
6 (0 Pair)
Jacket Material - Wire and Cable
PVC
Wire Size - Wire and Cable
22 AWG
NEC Article and Type
800 CMR

Product Description

Suitable for cable pull-ins and single-site installations, this cable is typically used for industrial equipment control, electric valve actuation, and remote signaling. It can also be used for communications and broadcast applications, in circuits requiring circuit-to-circuit isolation from noise, minimization of capacitance imbalances, and a reduction of EMI interference currents. Features fully annealed, stranded tinned copper conductors.
