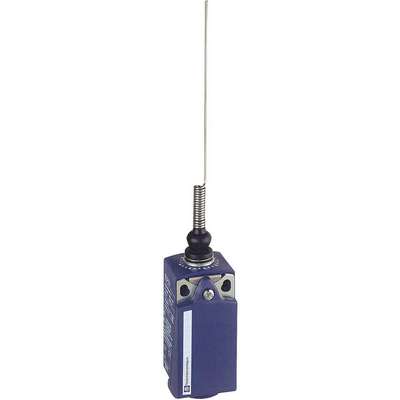

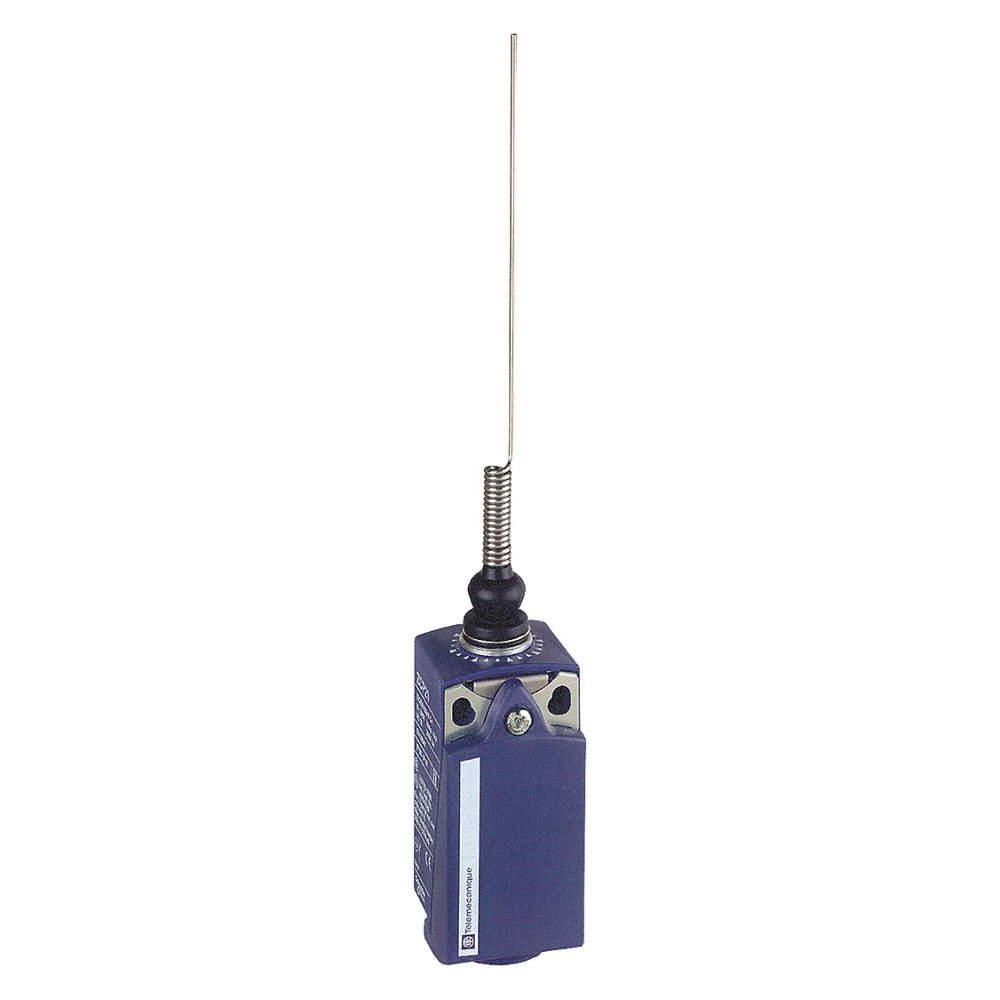

Telemecanique Sensors Wobble Stick, Cat Whisker General Purpose Limit Switch; Location: Top, Contact Form: 1NC/1NO, Any Di

Name: Telemecanique Sensors Wobble Stick, Cat Whisker General Purpose Limit Switch; Location: Top, Contact Form: 1NC/1NO, Any Di
Brand: TELEMECANIQUE SENSORS
SKU: 9180821
Price: 91.22 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#918082-1Pkg Qty: 1

$91.22 pkg | $91.22 ea

In Stock

Shipping to 43085

Expected to arrive Mon. Mar 24.

Technical Specifications

Key Specifications

AC Contact Rating

10 A @ 240 V

Height

2.56 in.

Actuator Length

5.19 in.

IP Rating

Actuator Location

Top

Item

General Purpose Limit Switch

Actuator Style

Cat Whisker

Limit Switch Style

General Purpose Limit Switch

Amperage

10 A

Mfr. Part Number

XCKP2106N12

Arm Material

Steel

Movement

Any Direction

Arm Width

0.05 in.

NEMA Rating

1, 2, 4, 6, 12, 13

Basic Actuator Style

Wobble Stick

Operating Force

0.90 in.-lb.

Body Depth

1.18 in.

Operating Temperature Range

-1 deg. F to 158 deg. F

Body Height

2.56 in.

Package Quantity

Body Material

Plastic

Replacement Body

4AE97

Body Style

Miniature

Replacement Head

ZCE06

Body Width

1.22 in.

Series

Xckp

Boot Sealed Actuator

Shipping Weight

.25 lb.

Brand

TELEMECANIQUE SENSORS

Style

Cat Whisker

Contact Form

1NC/1NO

Threaded for Panel Mounting

DC Contact Rating

10 A @ 240 V

Travel

Total Travel 90

Depth

1.18 in.

Type

Cat Whisker

Description/Special Features

1/2 in. NPT Conduit Entry

Voltage

240 VAC/DC

Electrical Connection

Screw Terminals

Voltage Rating

240 VAC/DC

Hazardous Location

Width

1.22 in.

General

AC Contact Rating - Limit Switch

10A @ 240V

DC Contact Rating - Limit Switch

10A @ 240V

Actuator Length - Limit Switch

5.19 in

Mounting - Limit Switch

Surface

Actuator Location - Limit Switch

Top

Mounting Hole - Limit Switch

(2) 0.17 in dia

Actuator Style - Limit Switch

Cat Whisker, Wobble Stick

Mounting Hole Pattern - Limit Switch

2 Hole Horizontal

Basic Actuator Style - Limit Switch

Wobble Stick

Mounting Hole Spacing - Limit Switch

0.75 in

Body Depth - Limit Switch

1.18 in

Operating Temp. Range

-13° to 158°F

Body Height - Limit Switch

2.56 in

Special Features

1/2 in. NPT Conduit Entry

Body Style - Limit Switch

Miniature

Standards

UL, CSA, CE

Body Width - Limit Switch

1.22 in

Stem Thread - Limit Switch

No Stem

Contact Form- Switches

1NC/1NO

Product Description

This compact limit switch features durable design elements including a cat whisker actuator and zinc body material. Use in packaging, materials handling, conveying, machining, and food and beverage handling.
