LIQUIDYNAMICS INC.

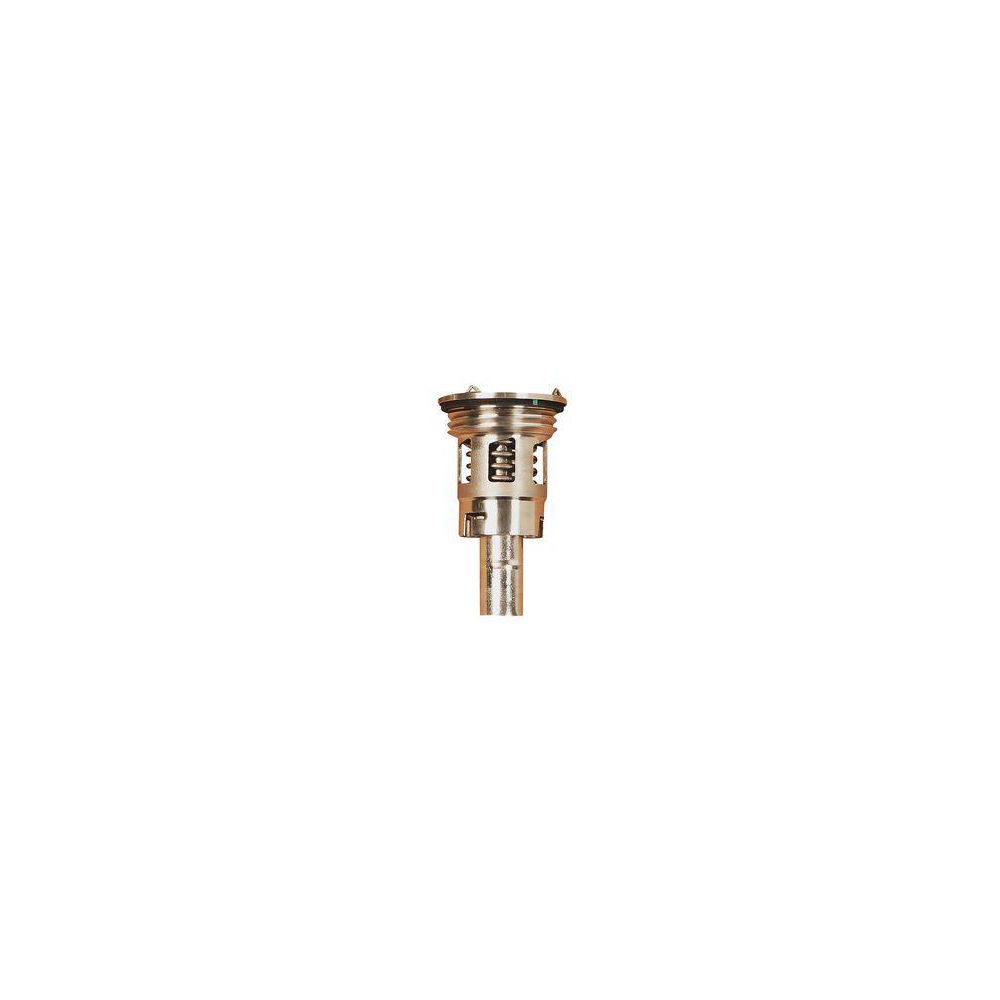

Drum Valve, 2-1/2", Stainless Steel, 104F

Hover over image to magnify
Drum Valve,4 Pin,SS,2In.
Drum Valve,4 Pin,SS,2In.

#918080-9 | Pkg Qty: 1

$171.63 pkg | $171.63 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
LIQUIDYNAMICS INC.
Pack Quantity
1
Item
Drum Valve
Shipping Weight
1.26 lb.
Mfr. Part Number
195205B
General
Compatible Chemicals
Acetic Acid 20%, Ammonium Hydroxide, Antifreeze (Coolant), Citric Acid 50%, DEF, Deionized Water, Ethyl (Ethanol), Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropyl (Isopropanol), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%)
Max. Fluid Temp.
104 Degrees F
Diesel Exhaust Fluid Compatible
Yes
Min. Fluid Temp.
17 Degrees F
Downtube Length
32 in, 40 in, 46 in
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, Diesel Fuel, E85, Ethyl Acetate, Fertilizers, Formic Acid, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Features
4 Key
Valve Thread Dia.
2 1/2 in
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Valve Thread Type
Buttress

Product Description

Drum and tote valves are fittings used with tote couplings so that suction tubes can remain attached to containers while drum pumps can be connected and removed as needed. The top of the valve threads into a container opening or bung hole adapter and the base of the valve connects to the drum pump tube. A tote coupling can then be seated on top of the valve to provide a connection point for a drum pump.

Item Barcode
9180809
Drum Valve,4 Pin,SS,2In.
 NameItemDescription
Grainger DropshipGrainger Dropship48GP48Drum Valve,4 Pin,SS,2In.
UNSPSC CODESUNSPSC CODES40151529
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Drum Valve,4 Pin,SS,2In.

For more product information by email, click here
