ARO

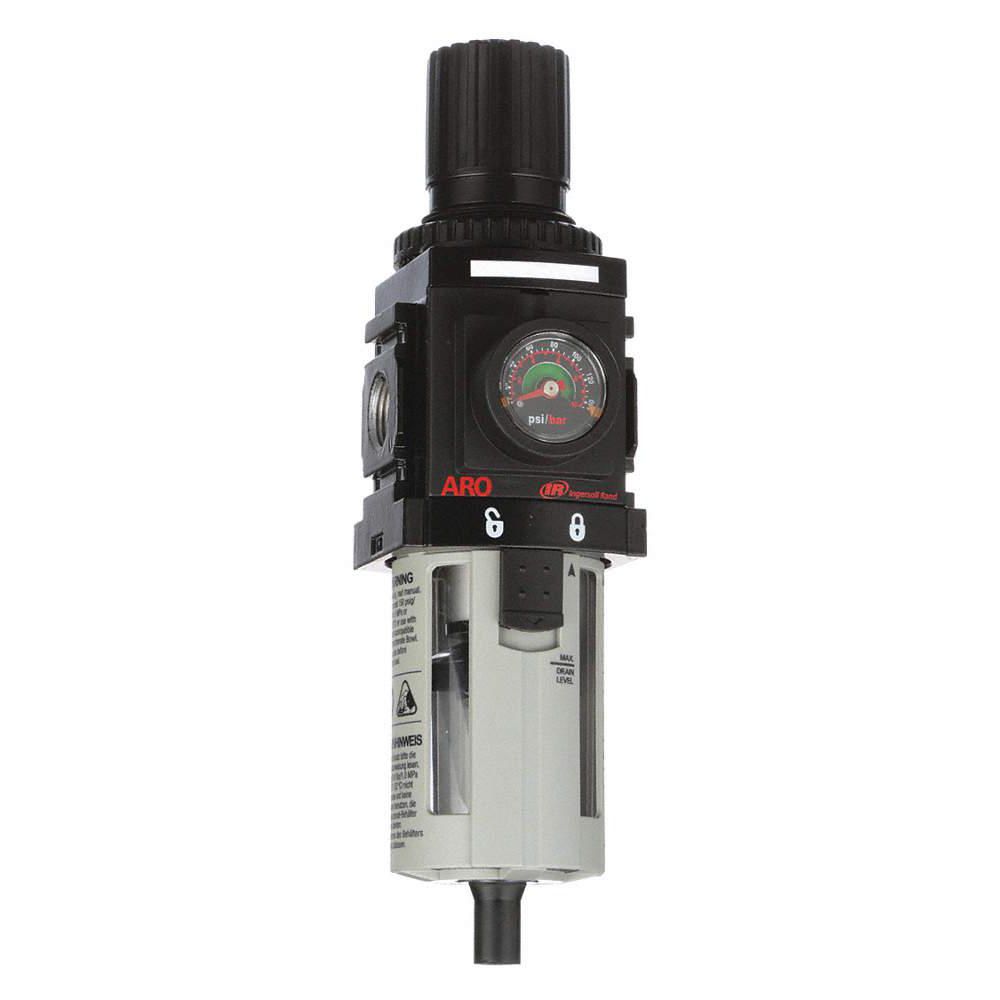

Filter-Regulator: 3/8 in NPT, 90 cfm, 5 micron, 0 psi to 140 psi, 150 psi Max Op Pressure
Hover over image to magnify
#918065-4 | Pkg Qty: 1
$175.84 pkg | $175.84 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Adjustment
0 to 140 psi
Maximum Temperature (Deg. F)
125
Adjustment Knob
Standard
Mfr. Part Number
P39234-600
Air Consumption
scfm
NPT
3/8 in.
Bowl Material
Polycarbonate
Overall Height
8.15 in.
Brand
ARO
Overall Width
2.2 in.
Drain Type
Manual
Package Quantity
1
Filter Rating
5 micron
Pipe Size
3/8 in. NPT
Item
Filter/Regulator
Series
1500
Maximum Flow
90 cfm
Shipping Weight
1.2 lb.
Maximum Flow (CFM)
90 CFM
Type
1 Piece
Maximum Pressure
150 psi
Width
2.2 in.
Maximum Temperature
125 deg. F
General
Adjustment Mechanism
Knob
For Removal Of
Oil, Particles, Water
Adjustment Range
0 to 140 psi
For Substance Type
Oil, Particles, Water
Adjustment Range - Air Treatment
0 to 140 psi
Gauge Port Size
1/8 in
Air Inlet Type
NPT
Includes
Gauge, Panel Nut
Air Outlet Size
3/8 in
Max. Flow - Air Treatment
90 cfm
Air Outlet Type
NPT
Max. Flow Range - Air Treatment
71 to 100 cfm
Bowl Material - Air Treatment
Polycarbonate
Max. Incoming Pressure - Air Treatment
150 psi
Bowl Size - Air Treatment
1.3 oz
Maximum Regulated Pressure
140 psi
Connection Size - Air Treatment
3/8 in NPT
Minimum Regulated Pressure
0 psi
Differential Pressure Indicator Included
Yes
Number of Air Inlets
1
Drain Part Compatibility
104425
Number of Air Outlets
1
Filter Bowl Capacity
1.3 oz
Pressure Drop
33 psi
Filter Bowl Guard Included
Yes
Pressure Gauge Included
Yes
Filter Bowl Material
Plastic
Pressure Gauge Port Size
1/8 in
Filter Element Material
Polyethylene
Pressure Gauge Port Type
NPT
Filter Rating (Microns)
5
Regulator Type
Relieving
Filter Rating - Air Treatment
5 micron
Size - Air Treatment
Subcompact
For Fluid Type
Oil, Particles, Water
System Location
Air Line
Product Description
Air Line Filter/Regulators are designed to remove airborne solid and liquid contaminants. Regulators also provide controlled, consistent air pressure.
Item Barcode
Filter/Regulator,8.15 In. H,2.
