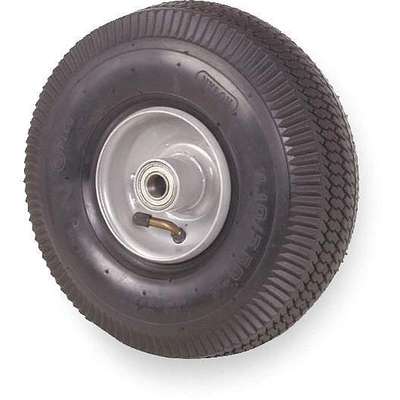

10" Light-Duty Sawtooth Tread Pneumatic Wheel, 230 lb. Load Rating

Hover over image to magnify
Pneumatic Wheel,10 In,230 Lb
PI_Asset_1380152
Pneumatic Wheel,10 In,230 Lb
PI_Asset_1380152

#918055 | Pkg Qty: 1

$16.79 pkg | $16.79 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Load Rating
230 lb.
Caster Load Rating Range
Light Duty
Mfr. Part Number
1NWU6
Caster Wheel Bearings
Ball
Package Quantity
1
Caster Wheel/Tread Material
Rubber
Ply
2
Caster/Wheel Tread
Sawtooth
Shipping Weight
3.4 lb.
Core Color
Silver/Gray
Tire Sidewall Number
4.10/3.50-4
Fits Axle Diameter
5/8 in.
Type
Commercial and Industrial,Tube
Frame Finish
Powder Coated
Wheel Bearings
Ball
Hub Length
3-1/4 in.
Wheel Diameter
10 in.
Hub Type
Symmetrical
Wheel Width
3-53/64 in.
Item
Pneumatic Wheel
General
Application
Hand Trucks and Cart Casters
Hub Width
3-1/4"
Bore Dia.
5/8 in
Hub Width (In.)
3-1/4
Fits Axle (In.)
5/8
Load Rating Range
0 to 299 lb
Fits Axle Dia.
5/8 in
Tire Rim Dia.
4 1/2 in
For Axle Size
5/8 in
Tire Rim Type
Standard
For Use With
Hand Trucks and Cart Casters
Tire Sidewall No.
4.10/3.50-4
Hub Material
Steel
Tire Thickness
3 1/2 in
Hub Materials
Steel
Tire Thickness (In.)
3.5
Hub Position
Center Mount

Product Description

Pneumatic wheels have tires that are filled with air to cushion loads against shock and vibration. They provide a quieter, more cushioned ride than semipneumatic and flat-free wheels, but they are more susceptible to punctures and require more maintenance to keep the tires filled to the correct pressure. They are suitable for areas where sharp debris isn't present.

Pneumatic, semipneumatic, and flat-free wheels have air-filled, foam-filled, or solid-rubber tires that absorb more shock and vibration and produce less noise than standard wheels. These wheels are used on carts, trucks, dollies, and other equipment that will be transporting fragile or vibration-sensitive loads in laboratory, medical, or aerospace facilities. They are also installed on wheelbarrows and other equipment that will be used for moving loads over rough or uneven surfaces in outdoor areas and industrial facilities. The wheels allow the equipment to roll, which reduces the effort it takes to reposition or move the equipment.
