DAYTON

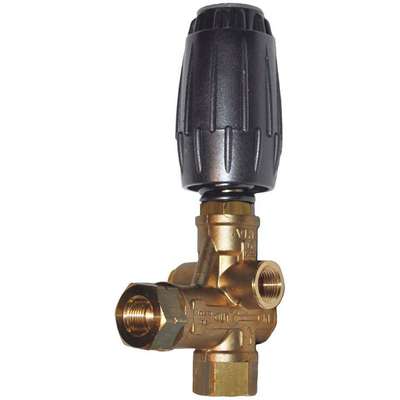

Valve: 0 to 10.5, 190°F Max. Fluid Temp. (F), 3/8 F, 4,500 psi Max. Pressure (PSI)
Hover over image to magnify
#918052-7 | Pkg Qty: 1
$91.78 pkg | $91.78 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Brass
Mfr. Part Number
1MDA4
Brand
DAYTON
Outlet Port
3/8 F
Inlet Port
3/8 F
Package Quantity
1
Item
Valve
Shipping Weight
2.15 lb.
Maximum Fluid Temperature (Deg. F)
190
Type
Regulating
Maximum Pressure
4500 psi
Wetted Materials
Brass, Stainless Steel, Buna-N, Steel
General
Application
Water and Nonflammable Liquids
For Use With
Plunger Pumps
Bypass Port
(2) 3/8 F
Max. Fluid Temp. (F)
190 Degrees F
Flow Range (GPM)
0 to 10.5
Product Description
High-Pressure Pump Accessories
- Regulating Unloader Valve
- Protects pump and system components from surge shock damage that can occur when spray guns are shut off at high pressure. Brass and stainless steel construction with Buna N seals.
- Regulating Valves
- Protect pumping systems from excess pressure. Brass bodies. Wetted materials: brass, stainless steel, Buna N, plastic, and steel on valves with male outlets; brass, stainless steel, Buna N, and steel on valves with female outlets.
- Part Numbers: 1MDA1 and 1MDA2 have a bolt-on design with internal bypass system. Part Number: 1MDA1 fits pumps Part Numbers: 4WXV7 to 4WXV9 and 4WXW1 to 4WXW6. Part Number: 1MDA2 fits pumps Part Numbers: 4WXX5, 4WXX6, 5ZNT5 to 5ZNT7, 5ZNT9, 5ZNU0, and 5ZNU1. Part Numbers: 1MDA3 and 1MDA4 feature a 1/4" accessory port.
Expertly Selected Product Pairings
Item Barcode
Valve, Regulating,0-12 Gpm
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1MDA4 | Valve, Regulating,0- |
 | UNSPSC CODES | 40141609 | |
 | VMRS (ATA) CODES | 053-006-009 | Valve, Regulating,0- |
